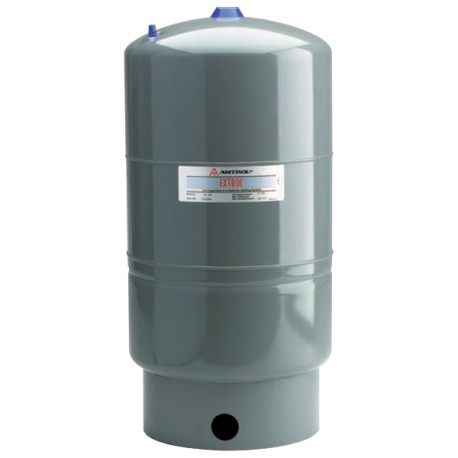

Extrol SX-90V Expansion Tank (44.0 Gal Volume) Amtrol
Extrol SX-90V Expansion Tank (44.0 Gal Volume)
Brand: Amtrol
Part#: 118-153
Model: SX-90V
This product has been discontinued. No direct replacement is available at this time.

Applications:
Closed loop hydronic heating.
Technical Specifications:
  • Factory pre-charged pressure: 12 PSI
  • System connection: 1-1/4" NPT
  • Max. operating temperature: 240F
  • Max. Max. working pressure: 100 PSIG
  • Expansion tank volume: 44 gallons
  • Max. accepted volume: 34.0
  • Height: 36"
  • Diameter: 22"
  • Shipping weight: 69 lbs

Warranty:
1-year manufacturer's warranty.
