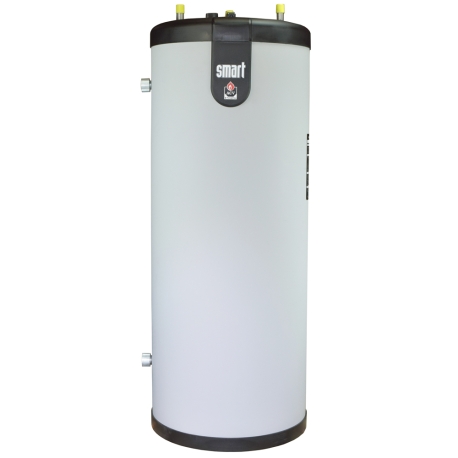

Smart 80 Indirect Water Heater, 70.0 Gal
Brand: Triangle Tube
Part#: SMART80
In Stock
Ship Pickup
Estimate delivery
Usually ships: within 3-4 business days
$2,285.95 / each
Free Shipping on any qty

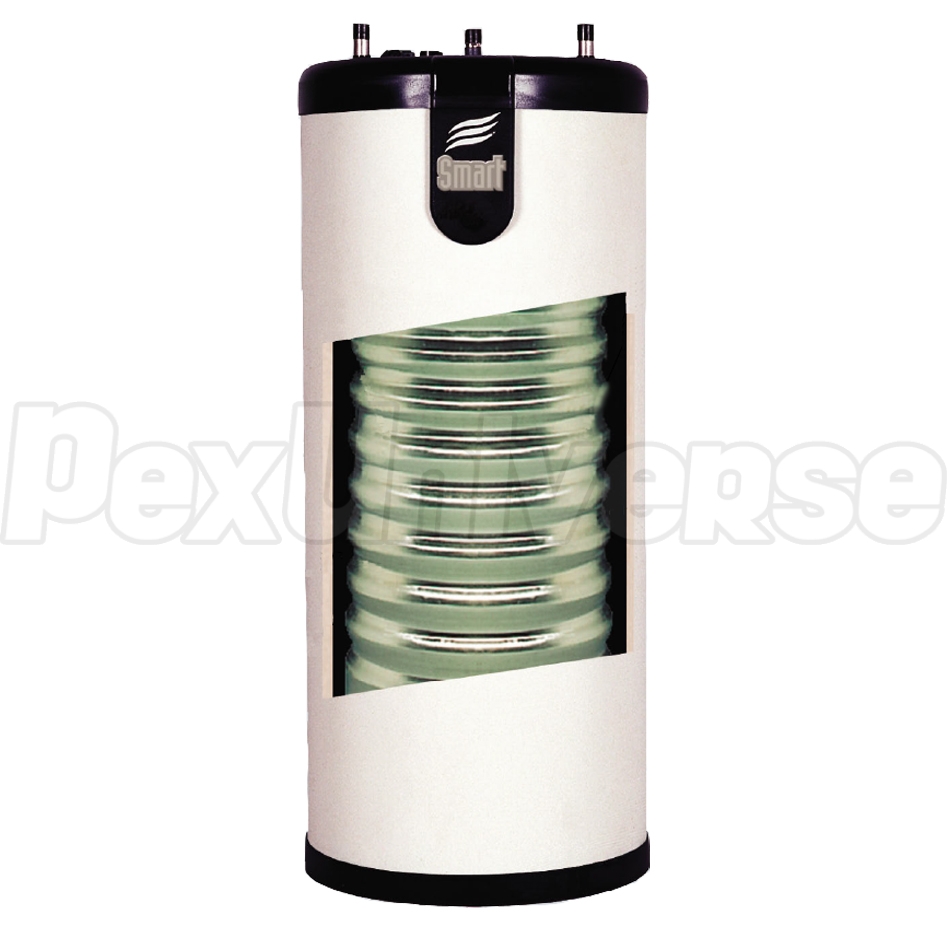

Smart series indirect water heaters by Triangle Tube (ACV) feature an exclusive tank-in-tank heat exchanger design, with 1.5 - 2 times the heat transfer surface - allowing for high energy-efficiency and hot water recovery times of up to x3 times faster than traditional gas or electric tank water heaters. 2" polyurethane tank insulation ensures minimal heat loss @ only 1°F / hr.

Features:
  • ACV exclusive tank-in-tank design
  • Self-cleaning, maintenance-free heat exchanger with surface area 1.5 - 2 times larger than traditional coil
  • Provides abundant hot water with a recovery rate of up to 3 times higher than conventional gas or electric water heater
  • Stand-by heat loss is less than 1°F per hour
  • Average life span exceeds 20 years.

Technical Specifications:
  • Domestic Water Capacity (Gallons): 70.0
  • Heat Exchanger Type: Tank-in-Tank
  • Heating Water Capacity (Gallons): 14.0
  • Domestic Water Connections: 1-1/2" NPT
  • Boiler Connections: 1-1/2" NPT
  • Min. Boiler Output (BTU/hr): 300,000
  • Continuous Domestic Hot Water Flow @ 90°F Rise (Gallons/hr): 400.0
  • 1st Hour Rating @ 90°F Rise (Gallons/hr): 460.0
  • Max Boiler Side Pressure (psi): 45
  • Max Domestic Water Pressure (psi): 150
  • Insulation Thickness: 2"
  • Dimensions (Diameter x Height): 26" x 61"
  • Empty Weight (lbs): 271.

Warranty:
Limited lifetime warranty
