Prestige Solo 110 Condensing Gas Boiler, 89,000 BTU
Brand: Triangle Tube
Part#: PA110
Model: Prestige Solo 110
Ship Pickup
Usually ships: within 5-7 business days
$3,480.95 / each
Free Shipping on any qty
Rebate:
This boiler meets the requirements for a federal tax credit and qualifies for a 30% (up to $600) rebate. Click here for more info.

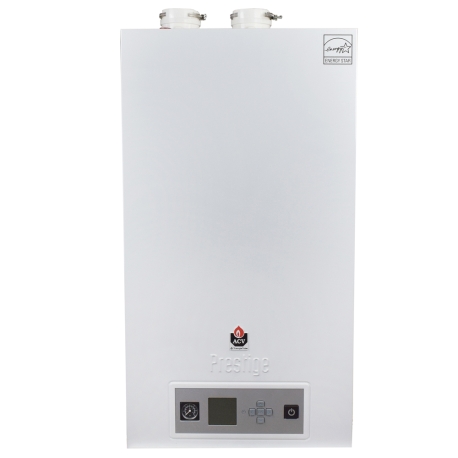

Prestige Solo 110 model by Triangle Tube (ACV) is a heat-only, Energy Star listed mod-con boiler with 89 MBTU (Net AHRI) output and ACVMax control.

Features:
  • 439 Stainless steel, self-cleaning ASME heat exchanger
  • Energy Star listed
  • Two outdoor reset curves / set points
  • Multiple zone & circulator control
  • High water capacity provides stable temperature control, adapts to high or low demand and reduces short-cycling
  • 6 pre-programmed applications for basebord, radiator, fan coil or radiant heat systems
  • Cascade functionality (up to 6 boilers)
  • Compatible with PVC, CPVC, PP (PolyPropylene - recommended) and S. Steel vent pipe
  • Low-NOx - 2012 SCAQMD Certified.

Technical Specifications:
  • Input Modulation (BTU): 20,000 - 110,000
  • DOE Rating (BTU): 102,000
  • Net AHRI Rating (BTU): 89,000
  • Efficiency (AFUE): 95%
  • Turndown (Modulation) Ratio: 5.5 : 1
  • Fuel Type: Natural Gas (NG) or Propane (LP)
  • System Type: Hydronic (Hot Water)
  • Boiler Connections: 1" NPT
  • Gas Connection: 1/2" NPT
  • Max. Boiler Side Pressure: 30 psi

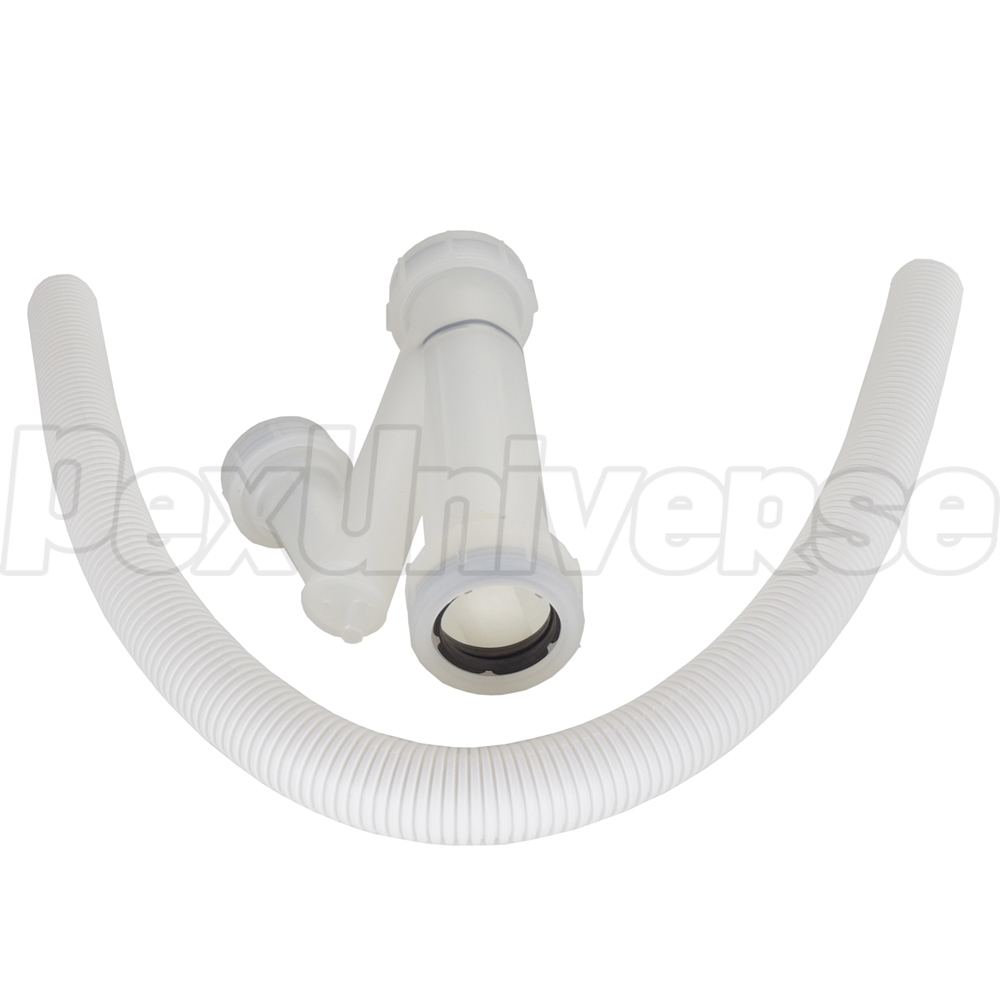

  • Condensate Drain: 3/4" NPT
  • Vent/Air Size: 3"
  • Vent Material: PVC, CPVC, PolyPropylene (recommended), St. Steel
  • Power Supply: 120V, 60Hz
  • Dimensions (Depth x Width x Height): 17-5/16" x 19-3/4" x 36-9/16"
  • Weight (lbs): 103
  • Water Volume (Gallons): 2.1
  • Mounting Type: Wall-mounted (Wall-hung).

Warranty:
10-Year limited heat exchanger warranty / 2-Year control & blower warranty
