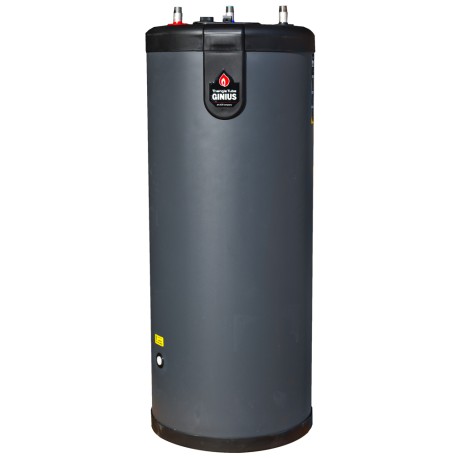

With all-stainless steel construction (both inner tank and outer shell), Ginius series idirect water heaters are designed to outlast and outperform any competition. Like other Triangle Tube indirect series, Ginius features a tank-in-tank design which effectively increases heat transfer area by 1.5 - 2 times, allowing for higher energy efficiency and faster domestic hot water recovery times - up to x3 times faster than traditional gas or electric tank water heaters.
Features:
- All stainless steel construction (internal tank and outer shell)
- ACV exclusive tank-in-tank design
- Self-cleaning, maintenance-free heat exchanger with surface area 1.5 - 2 times larger than traditional coil
- Provides abundant hot water with a recovery rate of up to 3 times higher than conventional gas or electric water heater
- Tank drain port
- Built-in aquastat
- Low standby loss (CFC/HCFC free foam insulation)
- Small footprint
- Lifetime residential warranty
- Domestic Water Capacity (Gallons): 44.0
- Heat Exchanger Type: Tank-in-Tank
- Heating Water Volume (Gallons): 1.0
- Domestic Water Connections: 3/4" NPT
- Boiler Connections: 1" NPT
- Required Min. Boiler Output @180°F Supply & 50°F Temp. Differential (BTU/hr): 92,000
- Required Min. Boiler Output @200°F Supply & 50°F Temp. Differential (BTU/hr): 155,000
- 1st Hour Rating @ 180°F boiler water and 90°F Rise (Gallons/hr): 155.0
- 1st Hour Rating @ 200°F boiler water and 90°F Rise (Gallons/hr): 240.0
- Peak Flow @ 180°F Boiler Supply Temp. (Gallons/hr): 55
- Peak Flow @ 200°F Boiler Supply Temp. (Gallons/hr): 70
- Continious Flow @ 180°F Boiler Supply Temp. (Gallons/hr): 120
- Continious Flow @ 200°F Boiler Supply Temp. (Gallons/hr): 205
- Circulator Min. Flow (GPM): 14
- Heat Exchanger pressure rating: 80 psi
- Heat Exchanger Pressure Drop: 4ft of head @ 15 GPM
- Empty Weight (lbs): 110
- Dimensions (Diameter x Height): 22" x 54"
