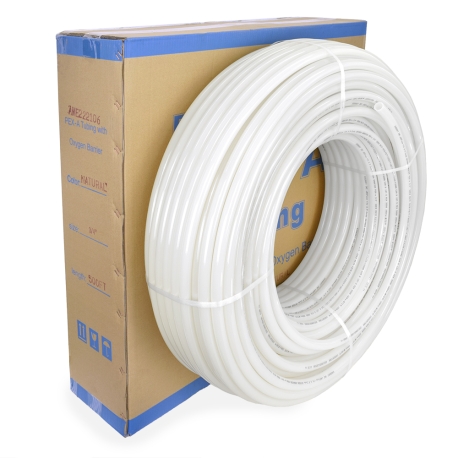

3/4" x 500ft Oxygen Barrier PEX-A Tubing, Natural Everhot
3/4" x 500ft Oxygen Barrier PEX-A Tubing, Natural
Brand: Everhot
Part#: ABT3450
In Stock
Ship Pickup
Estimate delivery
Usually ships: within 1 business day
Pick Up available
$312.95 / each
$1,223.80 box of 4
($305.95 each)
Free Shipping on any qty
Add to Cart

Description

500ft roll of 3/4" PEX-A Tubing with Oxygen Barrier for use in radiant heating applications. Complies with F1960 standard and intended for use with PEX expander tool (Everhot, Uponor/Wirsbo, Milwaukee, etc.), PEX expansion sleeves and brass or poly PEX expansion style fittings (Everhot, Uponor/Wirsbo, Sioux Chief, etc.). This pipe is a direct replacement for similar products from Uponor, Mr. PEX, Rehau, Sioux Chief and others.
Note: off-white is the natural color of PEX-a tubing, with no color additives added.
Manufactured to and meets or exceeds ASTM F876/877/F1807/F2129/F2098/F2080/F1960, CSA B137.5 and DIN 4726 standards.
NSF certified for use in radiant floor heating applications (NSF-rfh). UPC listed by IAPMO.
PPI pressure rated at: 79psi @ 200F, 100psi @ 180F, 160psi @ 73F
Packing: Box, 33" x 33" x 9.5". Weight: 59.0 lbs;



Everhot PEX-A Tubing with Oxygen Barrier:

  • Is manufactured to ASTM & CSA standards.
  • Tested and Certified by NSF for use in floor radiant heating applications.
  • NSF Certified to the Uniform Plumbing Code.

Compatibility:

Everhot Oxygen Barrier PEX-A Tubing if fully compatible with and can be installed using the following connection methods/systems:

  • Expansion method: PEX expander tool, expansion sleeves and expansion PEX fittings
  • Crimp method: copper PEX crimp rings, crimp tool and PEX crimp fittings
  • Clamp/cinch method: PEX clamp/cinch tool, stainless steel cinch clamps (such as Oetiker) and PEX crimp fittings
  • Press method (Viega proprietary): PEX press tool and PEX press fittings
  • Push-to-connect method: with push fittings from brands such as SharkBite, OmniGrip and others.

3/4" PEX-A Tubing with Oxygen Barrier is used mostly for large size radiant floor heating projects, piping baseboards and radiators, as well as for snow melting applications. According to RPA Standard Guidelines, recommended circuit length for 3/4" PEX tubing is 500ft - for radiant floor heating, or 300ft - for snow melting applications.

Applications:
  • Closed loop radiant floor heating or snow melting (embedded in concrete, stapled to a wooden subfloor or in combination with modular board systems)
  • Hydronic heating systems - copper finned baseboards (Slant-Fin, Argo, Embassy, etc.), radiators (cast iron and european style), fan coils

Cross-References:
  • Uponor/Wirsbo hePEX: A1240750
  • Mr.PEX Barrier: 1240050

Features:
  • Kinks can be repaired with a heat gun
  • Softer and easier to work with than PEX-b tubing
  • Higher flow rates and lower pressure drop when used with expansion style fittings (instead of crimp fittings)
Write a Review
Helpful? Yes 2 No
Verified Purchase
Good one!
Good product. Works perfectly fine! Just make sure that you have at least 18" before the check valve to prevent rattling noise on shutter
Size: 3/4" | Connections: Threaded
By Mitch, Plumber (from Los Angeles,CA) on 08/17/2016
Helpful? Yes No
Verified Purchase
Seems to work great time will tell
Seems to work great time will tell
Size: 3/4" | Connections: Threaded
By Adam (from Waynesboro, TN) on 01/16/2021
Helpful? Yes No
Verified Purchase
3/4" Sweat (CxC) Spring Check Valve (Lead-Free)
As other products ordered from Pex Universe arrived quickly, great price, and good quality. Also Pex Universe has large selection, all in one place with easy to use website. Will continue to use Pex for my plumbing needs.
Size: 3/4" | Connections: Sweat
By Russ (from Custer, SD) on 03/17/2015
Helpful? Yes -1 No
Verified Purchase
Great
Awesome easy to install
Size: 3/4" | Connections: Threaded
By Carl (from Henderson, NY) on 08/14/2020
Helpful? Yes -1 No
Verified Purchase
Exceptional performance
I like these check valves very much. The break pressure on the springs is perfect for low pressure applications.
Size: 3/4" | Connections: Threaded
By Lawrence (from Clinton, IL) on 05/20/2019
Helpful? Yes -1 No
Verified Purchase
Just what I needed
Love it.
Size: 3/4" | Connections: Threaded
By Eric (from Roscoe, NY) on 05/03/2019

FAQs

Ask a Question
What side of the circulator would this go the pressure side or the suction side.
Helpful? Yes No
The location of the check valve is determined by your system specifics rather than inlet/outlet side of the circulator pump.
By PexUniverse Customer Service on 12/05/2012
