8" x 25ft 316Ti Stainless Steel All-Fuel Chimney Liner Insert Kit
Brand: Z-Flex
Part#: 2ZFSFIKIT0825X
Usually ships: Upon availability
A complete all-fuel stainless steel chimney liner kit with insert adapter. Universally compatible with all types of fuel (wood, pellet, oil, gas) and appliances - stoves, fireplace inserts, boilers, water heaters, furnaces, unit heaters, etc.
Note: this kit includes a pre-stressed 16" x 16" flashing (for better drainage of rain/snow and for extra rigidity). If you require a flat flashing (13" x 13" and 18" x 18" available), we can make the change at no cost - simply leave a note during checkout. Pre-stressed flashings are suitable for square (or nearly square) chimneys only, whereas flat flashings can be trimmed to fit both square and rectangular chimney shapes (but lack the advantages of pre-stressed ones).

Cross-References:
  • DuraVent: 8DF316-25K, 8DF304-25K, 8VFT-25BL

Features:
  • Lifetime warranty
  • Universal (All-Fuel) compatibility - for Natural/Propane gas, Oil-fired & Wood appliances - boilers / stoves / water heaters / furnaces / unit heaters, etc.
  • Listed to UL1777 (US & Canada), ULc S635 (Class 3)
  • 0.006" thick (20% thicker than common 0.005") liner

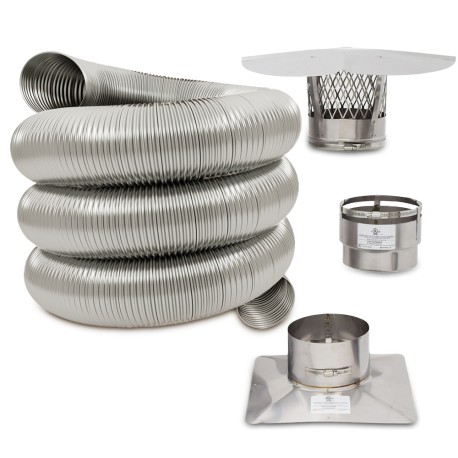

  • Complete kit includes chimney liner, EZ-connect sceened rain cap, pre-stressed flashing (eliminated the need for top support, prevents sagging and rain accumulation), EZ-connect universal adapter (for insert or vertical hookup) and self-tapping screws
  • Chimney liner made from heat, temperature, corrosion and acid-resistant 316Ti (titanium stabilized) stainless steel
  • Rain cap, flashing and adapter made from 304 stainless steel
  • Industry's strongest, air-tight and leak-proof patented Triple-Lock seam
  • Excellent flexibility with superior crush strength
  • Suitable for all Category I (atmospheric-vented) applications

Technical Specifications:
  • Liner Diameter: 8"
  • Liner Length: 25ft
  • Liner Thickness: 0.006"
  • Material: 316Ti (titanium-stabilized) stainless steel
  • Max. Temperature: 1,000°F (running), 1,400°F (occasional)
  • Minimum Chimney Inside Dimensions: 11" x 11"

Warranty:
Limited Lifetime Liner Warranty
