6ft (72") Cast Iron Baseboard Radiator Assembly, Floor Standing, 10" H x 2-1/2" D
Brand: OCS
Part#: BAP6
In Stock
Ship Pickup
Estimate delivery
Usually ships: within 1 business day
Pick Up available
$420.95 / each
$1,563.80 box of 4
($390.95 each)
Free Shipping on any qty
Add to Cart

Description

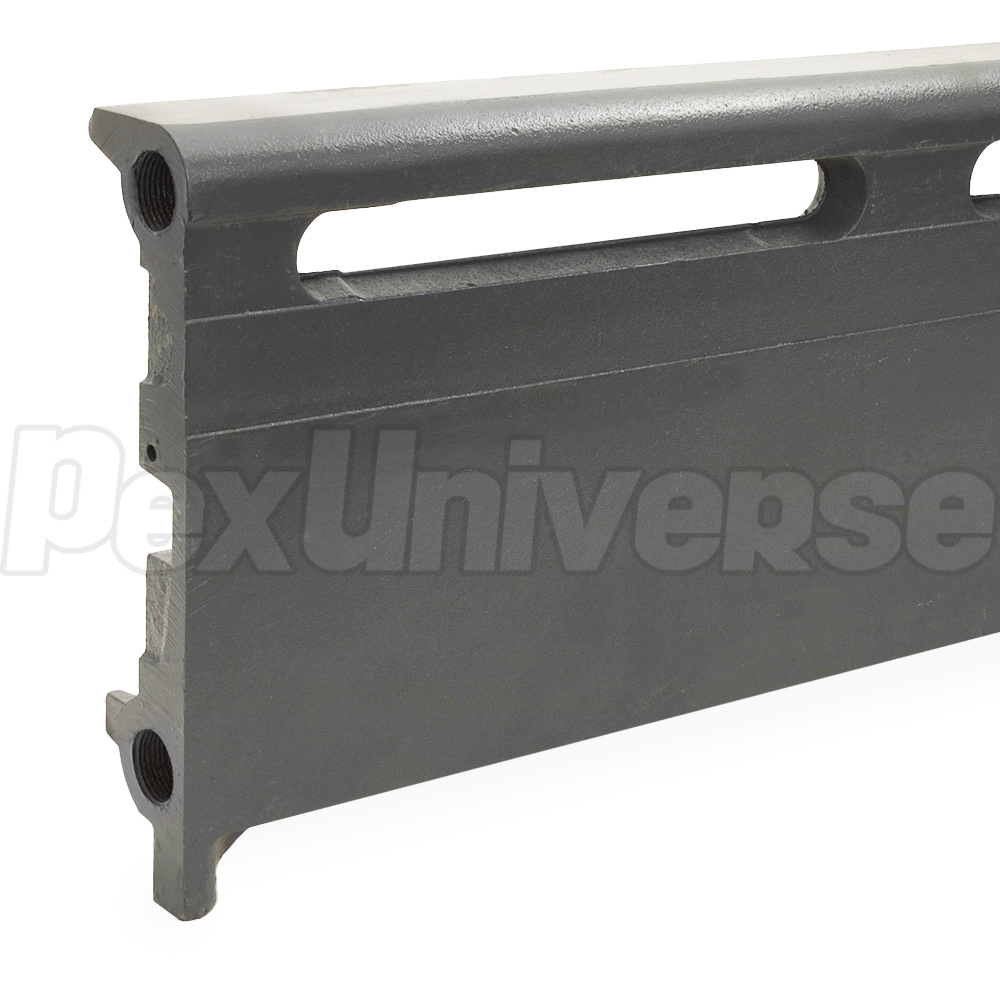

72" cast iron baseboard assembly with legs and wall anchor kit.

Cross-References:
  • Burnham Baseray: 9A6C

Features:
  • Up to 2x the output of conventional baseboard and up to 5x the radiant heat
  • Heavy-duty vandal-resistant design
  • Utilizes both convection and radiant heat for smoother, more comfortable space heating
  • Quieter operation than conventional baseboards
  • Can be painted to match interior design colors

Technical Specifications:
  • Dimensions: 9-7/8" High (overall) x 2-7/16" Deep (front to wall) x 72" Long/Wide (overall)
  • Weight: approx 102 lbs
  • Connections: (4) 3/4" FNPT threaded (2 on ea. side - one on top and one on bottom)
  • Material: Cast Iron
  • Max Operating Pressure: 30 psi Water or 15 psi Steam
  • BTU's @ 160F: 2640 BTU/hr @ 1GPM, 2820 BTU/hr @ 4GPM
  • BTU's @ 180F: 3420 BTU/hr @ 1GPM, 3600 BTU/hr @ 4GPM
  • BTU's @ 200F: 4200 BTU/hr @ 1GPM, 4440 BTU/hr @ 4GPM
  • Steam BTU's: 4680 BTU/hr
  • For BTU ratings at other temperatures and flow rates, see Specs file.
