3" Galvanized Swivel Ring Hanger
Brand: PHD
Part#: 141-300-EG
In Stock
Ship Pickup
Estimate delivery
Usually ships: within 1 business day
Pick Up available
$1.10 / each
$50.00 box of 50
($1.00 each)
Add to Cart
Orders over $99 ship free

Description

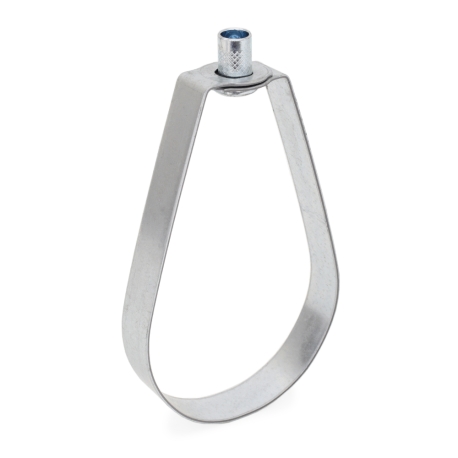

Provides horizontal support for 3" black or galvanized pipe. The knurled insert nut allows for a vertical adjustment after installation.

Technical Specifications:
  • Max. Pipe Size: 3"
  • Max. Threaded Rod Size: 3/8"
  • Material: Carbon Steel
  • Finish: Galvanized
  • Overall Height: 6-5/16"
  • Max Recommended Load: 525 lbs
  • Complies w/ Federal Specifaction A-A-1192A (Type 10)
  • ANSI/MSS SP-69 & SP-58 (Type 10) Certified.
