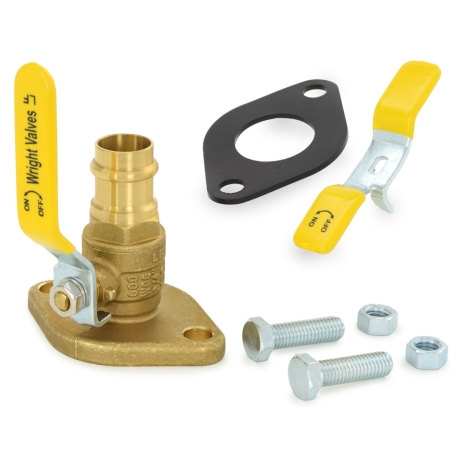

Pump isolation flange valves offer a quick and easy way to isolate a circulator pump for service, replacement or repair without draining and re-filling the entire system. These valves are compatible with most circulators, including:
Grundfos: UP15, UPS15, UPSe, UP26, UPS26 and Alpha series;
Taco: 005, 006/006e, 007/007e, 008, 009, 0010, 0011, 0013, 0014, 0015/0015e, 0018e, Viridian and series pumps;
As well as most common B&G, Wilo and Armstrong circulator pumps.
Features:
- Compatible with all copper pipe types (K, L, M) and any brand copper press tool - Milwaukee, Viega, etc.
- Includes universal circulator pump gasket
- Uni-body design
- Heavy-duty forged brass body
- Full port design
- 1/4-turn, rubber coated reversible steel handle (+ additional T-handle for limited space installations)
- High quality PTFE seats
- Adjustable packing nut
- Blowout-proof stem.
Technical Specifications:
- Pressure Rated: 600 WOG (CWP)
- Flange Connection: Standard Flange (3-1/8" On Center Holes) - fits most circulators on the market
- Pipe Connection: 3/4" Copper Press
- Each set includes: (1) Isolator Flange Valve, (1) Gasket, (2) Bolts and (2) Nuts, (1) T-handle)
