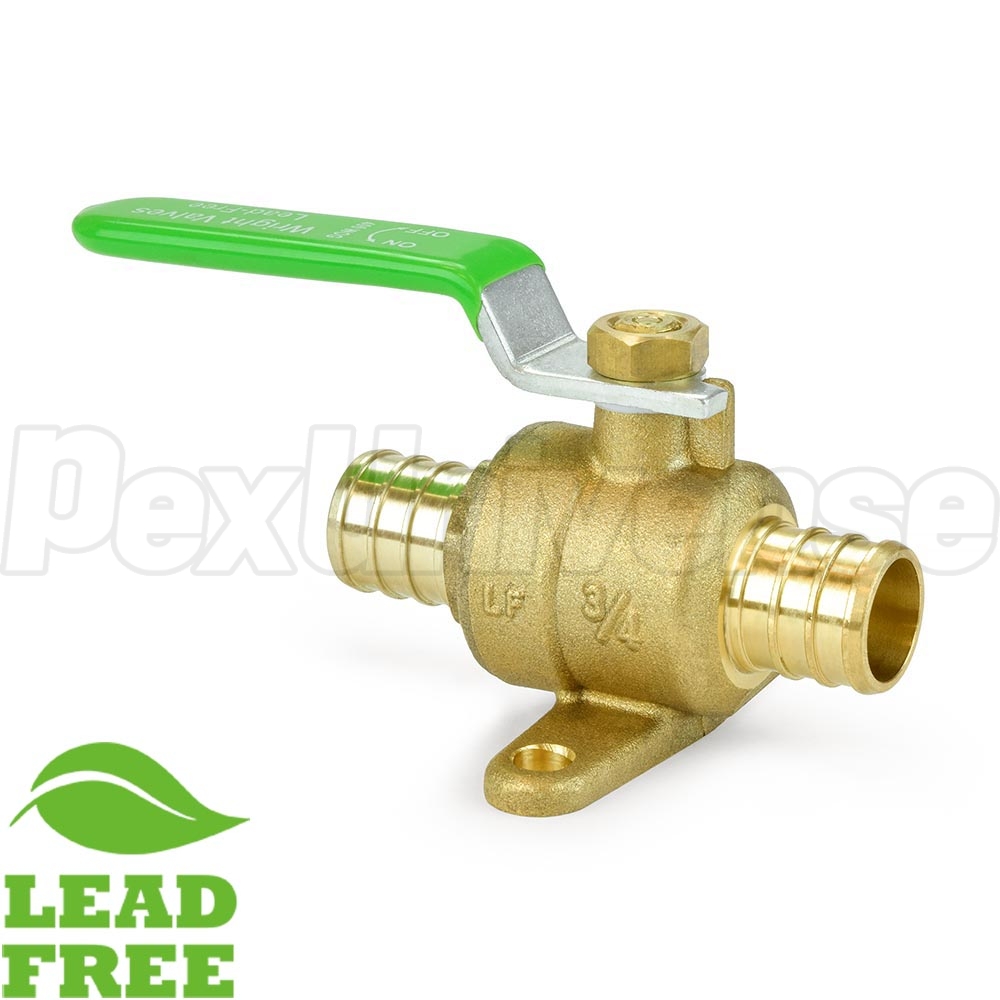

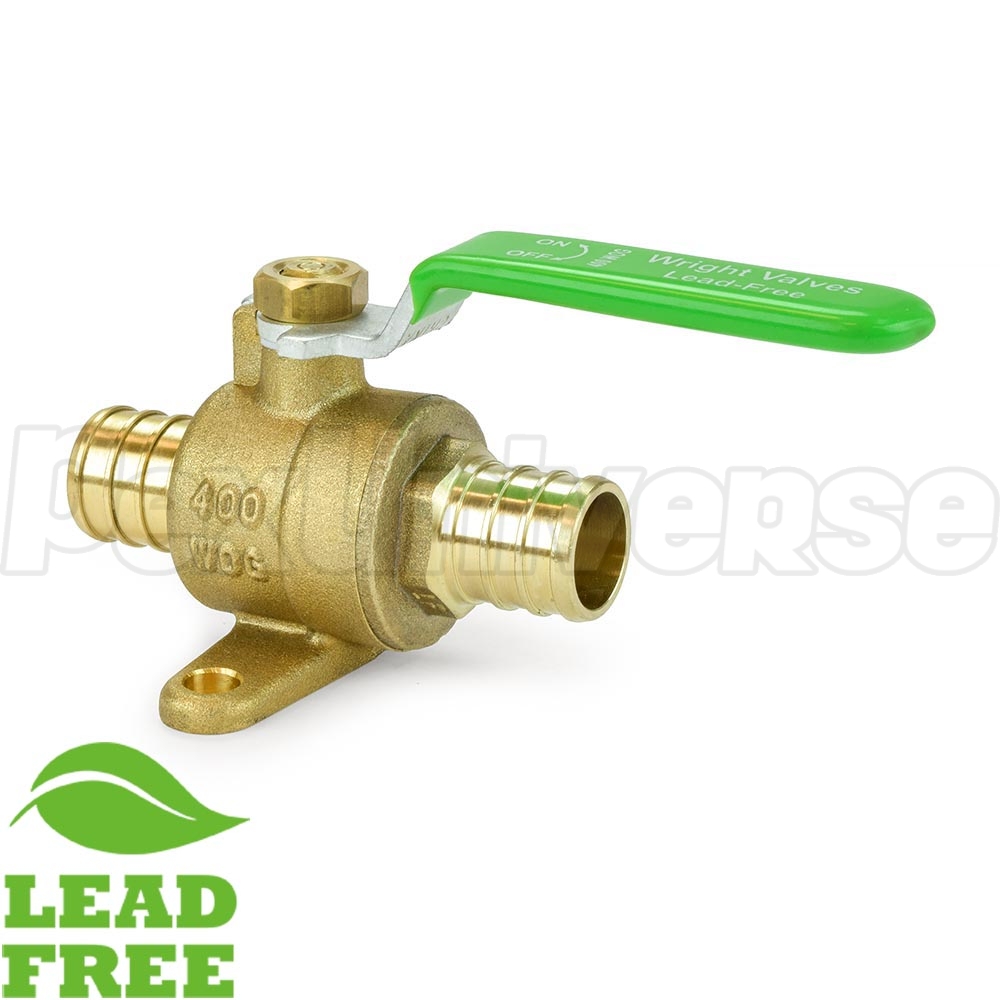

3/4" PEX Brass Ball Valve w/ Drop Ears, Full Port (Lead-Free)
Brand: Wright Valves
Part#: VPP034-DE-LF
In Stock
Ship Pickup
Estimate delivery
Usually ships: within 1 business day
Pick Up available
$7.10 / each
$64.00 box of 10
($6.40 each)
Add to Cart
Orders over $99 ship free

Description

3/4" PEX Ball Valve with Drop Ears features equal 3/4" PEX crimp style connections on both sides on the valve. PEX Tubing can be connected to the valve using either crimp or clamp (cinch) connection methods. Approved for potable water use nationwide and compatible with all types of PEX (A, B, C).

Technical Specifications:
  • Inlet/Outlet Connections: 3/4" PEX, crimp style (ASTM F1807)
  • Non-shock WOG: 400psi
  • Standard Working Pressure: 150psi
  • Maximum Operating Temperature: 200F
  • Valve Body Material: Lead-Free Brass (NSF/ANSI 372, 61-G)
  • Seats: Teflon
  • Handle Type: 1/4 - turn, Stainless Steel.
Write a Review
Helpful? Yes 2 No
Verified Purchase
Works for me
Made my own manifold using these
Size: 1/2"
By jeff (from Cincinnati, OH) on 04/28/2020
Helpful? Yes No
Verified Purchase
PEX Fittings
These seem to be of good quality comparable to big box stores are around half the price.
Size: 1/2"
By Mickella (from Chesapeake, VA) on 10/30/2024
Helpful? Yes No
Verified Purchase
Worked as expected.
System is under pressure. Valve works. Doesn't leak
Size: 1/2"
By Michael (from Carlisle, PA) on 06/17/2023
Helpful? Yes No
Verified Purchase
Thanks!
Thanks!
Size: 1/2"
By Mike (from Diamond city, AR) on 05/06/2023
Helpful? Yes No
Verified Purchase
Perfect
Perfect
Size: 1/2"
By Shawn (from Moriches, NY) on 12/13/2022
Helpful? Yes No
Verified Purchase
Thank you
Size: 1/2"
By Brent (from Santa fe, TX) on 08/28/2022
Helpful? Yes No
Verified Purchase
Sticky when new.
Sticky when new, but after open/close ten times works great.
Size: 3/4"
By thomas (from Rockford, IL) on 07/01/2022
Helpful? Yes No
Verified Purchase
Excellent quality
Excellent quaility.
Size: 3/4"
By Bruce (from Alexandria, VA) on 04/07/2022
Helpful? Yes No
Verified Purchase
Good
A little stiff to start but works fine.
Size: 1/2"
By Joel (from Stafford, VA) on 04/04/2022
Helpful? Yes No
Verified Purchase
Very good product
Fairly fast free delivery
Size: 3/4"
By Frank (from Issaquah, WA) on 12/22/2021
Helpful? Yes No
Verified Purchase
Quality parts
Real nice product
Size: 3/4"
By John (from Knoxville, IL) on 01/20/2021
Helpful? Yes No
Verified Purchase
Not junk
Nice, they do not feel like junk, nice valve
Size: 1/2"
By AJ (from Pottsville, PA) on 08/24/2020
Helpful? Yes No
Verified Purchase
Like it
I like it
Size: 3/4"
By cesar (from Astoria, NY) on 07/30/2020
Helpful? Yes No
Verified Purchase
Well made
Nice mounting bracket
Size: 1/2"
By Robert (from Stony point, NY) on 03/20/2020
Helpful? Yes No
Verified Purchase
Great Quality valves
Valves function exactly as they are expected to without any leakage or bypass.
Size: 3/4"
By Lawrence (from Clinton, IL) on 05/20/2019
Helpful? Yes No
Verified Purchase
good
good
Size: 3/4"
By james (from Omaha, NE) on 05/12/2019
Helpful? Yes No
Verified Purchase
Ball Valve
Good price, fast shipping.
Size: 3/4"
By MORRIS (from Port hope, MI) on 02/15/2019
Helpful? Yes No
Verified Purchase
Excellent
Full port has an obvious advantage over partial port for full flow in a boiler application.
Size: 3/4"
By Timothy (from Christiana, PA) on 02/04/2019
Helpful? Yes No
Verified Purchase
Good Ball Valves
Worked for me. Ordered a dozen, and with the dropped ear it makes an easy installation.
Size: 1/2"
By Gene (from Midlothian, VA) on 08/24/2018
Helpful? Yes No
Verified Purchase
The best valve in its class
Excellent quality, heavy duty and I would use anything else. I use 20 of these valves every month.
Size: 1/2"
By Guest on 06/14/2017
Helpful? Yes No
Verified Purchase
Nice stable valve
I wish they came in 1" with the screw mounts.
Size: 3/4"
By Verified Buyer on 09/01/2016
Helpful? Yes -1 No
Verified Purchase
Owner
Haven’t used them yet
Size: 1/2"
By Clayton (from Lubec, ME) on 03/26/2020

FAQs (4)

Ask a Question
Can this be used with Apollo tubing and cinch connectors
Helpful? Yes 2 No
Yes, all PEX crimp valves and fittings we sell are universally compatible with crimp style products from other manufacturers.
By PexUniverse Customer Service on 10/26/2017
Is this good for Pex-A (Propex), it doesn't really explicitly any where A or B.
Helpful? Yes No
The connection on the valve is PEX Crimp, which is designed primarily for PEX-B, but is also compatible with PEX-A tubing when used with crimp or cinch (clamp) method, since both pipes have the same ID/OD/wall thickness.
By PexUniverse Customer Service on 07/12/2022
Is there a stem extension available for these valves? Thanks for your time.
Helpful? Yes No
At the moment, we do not offer a stem extension for these, but we plan to offer it in the near future.
By PexUniverse Customer Service on 01/03/2022
Can you use this with the viega Pex press tool if you purchase the press rings as well?
Helpful? Yes No
No. Connections on this valve is crimp style and although it bears resemblance to the Viega's press connection, the two are different by design.
By PexUniverse Customer Service on 02/25/2019
