2ft (24") Cast Iron Baseboard Radiator Section(Center), 10" H x 2-1/2" D OCS
2ft (24") Cast Iron Baseboard Radiator Section(Center), 10" H x 2-1/2" D OCS
2ft (24") Cast Iron Baseboard Radiator Section(Center), 10" H x 2-1/2" D OCS
2ft (24") Cast Iron Baseboard Radiator Section(Center), 10" H x 2-1/2" D OCS
2ft (24") Cast Iron Baseboard Radiator Section(Center), 10" H x 2-1/2" D
Brand: OCS
Part#: BAC2
Ship Pickup
Usually ships: Upon availability
$140.95 / each
$523.80 box of 4
($130.95 each)
Free Shipping on any qty
Add to Cart

Description

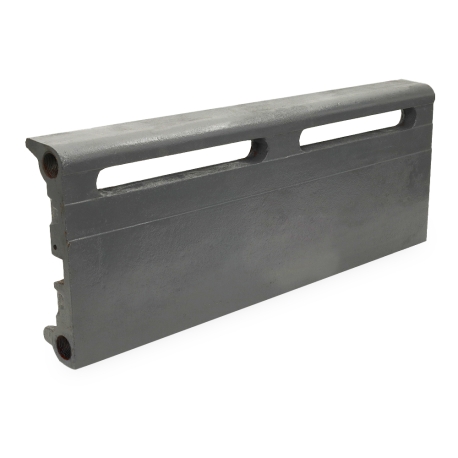

24" long solid cast iron baseboard section (Center) with wall anchor kit. Intended for assembly with another section to form a desired length continuous baseboard.

Cross-References:
  • Burnham Baseray: 9A2I

Features:
  • Up to 2x the output of conventional baseboard and up to 5x the radiant heat
  • One-piece, solid cast iron construction
  • Heavy-duty vandal-resistant design
  • Combine with other sections to create continuous baseboard lengths up to 18ft
  • Utilizes both convection and radiant heat for smoother, more comfortable space heating
  • Quieter operation than conventional baseboards
  • Can be painted to match interior design colors

Technical Specifications:
  • Dimensions: 9-7/8" High (overall) x 2-7/16" Deep (front to wall) x 24" Long/Wide (overall)
  • Weight: approx 34 lbs
  • Connections: (4) push nipple connections (for attaching additional baseboard sections on both left and right sides)
  • Material: Cast Iron
  • Max Operating Pressure: 30 psi Water or 15 psi Steam
  • BTU's @ 160F: 880 BTU/hr @ 1GPM, 940 BTU/hr @ 4GPM
  • BTU's @ 180F: 1140 BTU/hr @ 1GPM, 1200 BTU/hr @ 4GPM
  • BTU's @ 200F: 1400 BTU/hr @ 1GPM, 1480 BTU/hr @ 4GPM
  • Steam BTU's: 1560 BTU/hr
  • For BTU ratings at other temperatures and flow rates, see Specs file.
