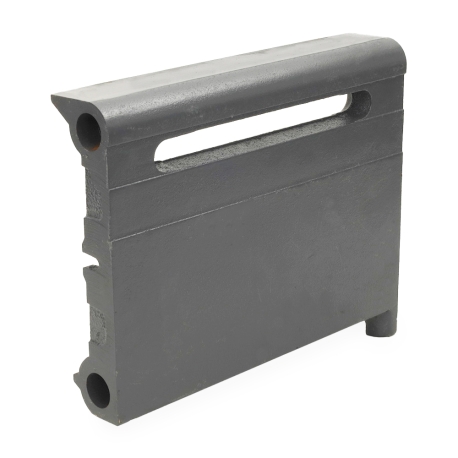

1ft (12") Cast Iron Baseboard Radiator Section (Right), Floor Standing, 10" H x 2-1/2" D OCS
1ft (12") Cast Iron Baseboard Radiator Section (Right), Floor Standing, 10" H x 2-1/2" D
Brand: OCS
Part#: BAR1
In Stock
Pick Up ready by {{ pickupBy }}
Usually ready: within 1 hour

Description

12" long solid cast iron baseboard section (Right) with wall anchor kit. Intended for assembly with another section to form a desired length continuous baseboard.

Cross-References:
  • Burnham Baseray: 9A1R

Features:
  • Up to 2x the output of conventional baseboard and up to 5x the radiant heat
  • One-piece, solid cast iron construction
  • Heavy-duty vandal-resistant design
  • Combine with other sections to create continuous baseboard lengths up to 18ft
  • Utilizes both convection and radiant heat for smoother, more comfortable space heating
  • Quieter operation than conventional baseboards
  • Can be painted to match interior design colors

Technical Specifications:
  • Dimensions: 9-7/8" High (overall) x 2-7/16" Deep (front to wall) x 12" Long/Wide (overall)
  • Weight: approx 17 lbs
  • Connections: (2) 3/4" FNPT threaded on right side and (2) push nipple connections (for attaching another baseboard section) on left side
  • Material: Cast Iron
  • Max Operating Pressure: 30 psi Water or 15 psi Steam
  • BTU's @ 160F: 440 BTU/hr @ 1GPM, 470 BTU/hr @ 4GPM
  • BTU's @ 180F: 570 BTU/hr @ 1GPM, 600 BTU/hr @ 4GPM
  • BTU's @ 200F: 700 BTU/hr @ 1GPM, 740 BTU/hr @ 4GPM
  • Steam BTU's: 780 BTU/hr
  • For BTU ratings at other temperatures and flow rates, see Specs file.
