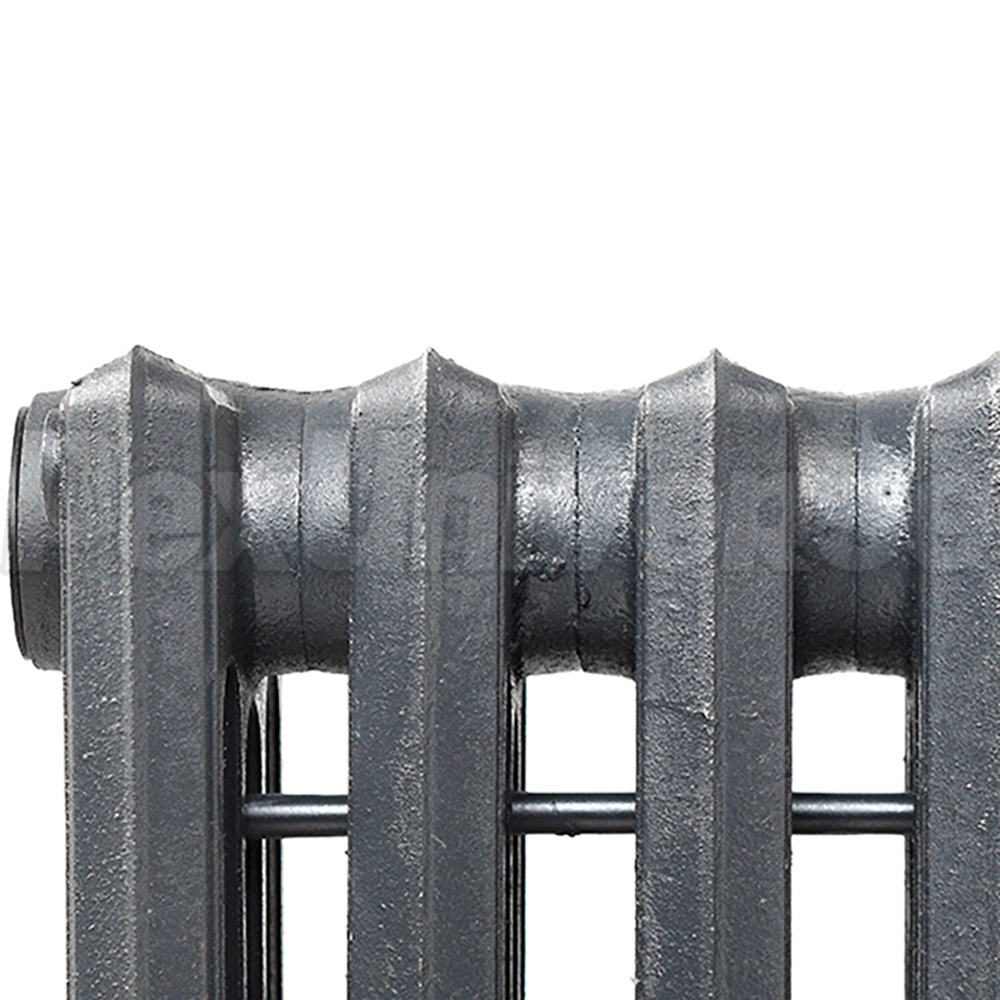

12-Section, 4" x 19" Cast Iron Radiator, Free-Standing, Slenderized/Tube style
Brand: OCS
Part#: T41912
In Stock
Ship Pickup
Estimate delivery
Usually ships: within 1-2 business days
Pick Up available
$280.95 / each
$1,043.80 box of 4
($260.95 each)
Free Shipping on any qty
Add to Cart

Description


Cross-References:
  • Burnham (U.S. Boiler) radiator of same size
  • Governale (Gov-Free series) radiator of same size

Technical Specifications:
  • Steam BTU: 2,880
  • BTU @ 220°F: 4,800
  • BTU @ 215°F: 4,608
  • BTU @ 210°F: 4,416
  • BTU @ 200°F: 4,032
  • BTU @ 190°F: 3,648
  • BTU @ 180°F: 3,264
  • BTU @ 170°F: 2,880
  • BTU @ 160°F: 2,496
  • BTU @ 150°F: 2,112
  • Water Content (Gal): 0.96
  • Connections: Top: 1" FNPT, Bottom: 1-1/4" FNPT, Air Vent: 1/8" FNPT
  • Max Working Pressure: 15 psi (Steam), 30 psi (Water)
  • Max Working Temperature: 220°F
  • Dimensions (D x H x W): 4-1/2" x 19" x 21"
  • Weight: 87 lbs

Documents

Write a Review
Helpful? Yes 4 No
Verified Purchase
Awesome product (:
Just before you install it don't forget to clean the inside of it.
Sections: 8 | Size (D X H): 4-1/2" x 25"
By Eli (from Medford, MA) on 01/21/2020
Helpful? Yes 4 No
Verified Purchase
14 Section 4" x 25" cast Iron Radiator
Tis radiator worked perfectly, exactly what I wanted.
Sections: 14 | Size (D X H): 4-1/2" x 25"
By CARLOS (from Hawthorne, NY) on 11/08/2019
Helpful? Yes 4 No
Verified Purchase
Shipping/packaging problem
The radiator would have worked just fine if it had been packaged better. Two of the legs were broken off in transit. This size radiator should have been crated or put on a pallet. It was just shipped in a cardboard box with styrofoam boards around it.
Sections: 16 | Size (D X H): 4-1/2" x 25"
By John (from Bellingham, WA) on 10/11/2019
Helpful? Yes 3 No
Verified Purchase
Radiator Install
No problems with the install and working perfectly.
Sections: 10 | Size (D X H): 4-1/2" x 19"
By Frank W (from Bergenfield, NJ) on 11/03/2019
Helpful? Yes 2 No
Verified Purchase
Steam Radiator
Looks Great, the only thing is that I thought it would come with plugs for the un used holes.
Sections: 8 | Size (D X H): 4-1/2" x 25"
By Richard (from Norwood, NJ) on 10/01/2021
Helpful? Yes 1 No
Verified Purchase
pretty
clean
Sections: 6 | Size (D X H): 4-1/2" x 19"
By Alfredo (from Harrisburg, PA) on 07/03/2020
Helpful? Yes No
Verified Purchase
Took back some wall space
Customer service was excellent. The product shipped promptly. A good source for this product. The radiators are exactly what I needed for my renovation on an 1805 brick house. It had baseboards that took up way too much wall space.
Sections: 16 | Size (D X H): 4-1/2" x 19"
By Brian (from Powhatan, VA) on 01/20/2025
Helpful? Yes No
Verified Purchase
Just what I would expect.
No leaks, good threads, ‘excellent packing and shipping. What more can a customer ask for?
Sections: 8 | Size (D X H): 4-1/2" x 25"
By Philip (from Providence, RI) on 11/27/2024
Helpful? Yes No
Verified Purchase
Replacement
I needed a replacement radiator asap, and got it asap.
Sections: 12 | Size (D X H): 4-1/2" x 19"
By Jean (from Troy, NY) on 09/05/2024
Helpful? Yes No
Verified Purchase
Plain and functional
A few rough edges but perfectly serviceable and well priced.
Sections: 10 | Size (D X H): 4-1/2" x 19"
By Sara (from Troy, NY) on 06/27/2024
Helpful? Yes No
Verified Purchase
Cast Iron Radiators
We just bought another two radiators to fix our system, which makes six altogether this summer. So far, they seem to be working just fine. We haven’t tested them in very cold weather, and the house is in Michigan, and a rental. It’s surprising how well these are working so far, since they’re so much smaller than the Victorian ones previously in there. The old ones leaked and had to be replaced, unfortunately, since they were so pretty, but they were considerably bigger, and these new ones seem to be working as well, and don’t make such a large statement in the rooms. We got back some real estate replacing them. Shipping was timely, and the packaging adequate enough for them to arrive intact.
Sections: 8 | Size (D X H): 4-1/2" x 25"
By Elizabeth (from Calumet, MI) on 09/24/2023
Helpful? Yes No
Verified Purchase
Looks Right
This cast iron radiator has dimensions and appearance that make it an ideal replacement for an century old one that would cost more than twice as much to restore. Can not comment on its function until heating demands are placed on it.
Sections: 8 | Size (D X H): 4-1/2" x 25"
By Willliam (from Washington, DC) on 08/13/2023
Helpful? Yes No
Verified Purchase
great product!
Product was delivered hassle free and a great looking unit.
Sections: 16 | Size (D X H): 4-1/2" x 19"
By Jonathan (from Creekside, PA) on 07/17/2023
Helpful? Yes No
Verified Purchase
Small unit
This unit is smaller than I imagined but it does heat the space. The delivery was as related.
Sections: 8 | Size (D X H): 6-7/8" x 25"
By Sheila (from Trenton, NJ) on 02/23/2023
Helpful? Yes No
Verified Purchase
Radiator
Fast turn around !!!
Sections: 4 | Size (D X H): 4-1/2" x 19"
By Ronald J (from Scranton, PA) on 12/08/2022
Helpful? Yes No
Verified Purchase
Check your dimensions before ordering
Smaller than I expected, but my fault for not really measuring and just assuming it would be like the 100yr old ones already in the house. Looks great though and will install this week.
Sections: 10 | Size (D X H): 4-1/2" x 19"
By Marc (from Idaho falls, ID) on 11/15/2022
Helpful? Yes No
Verified Purchase
Cast Iron Radiator
Exactly what I wanted. Received it quickly and no shipping fee was a big plus.
Sections: 12 | Size (D X H): 4-1/2" x 19"
By Allen (from Gilman, WI) on 11/07/2022
Helpful? Yes No
Verified Purchase
Great!
The radiator is just what I needed. A local plumbing shop was able to sell me a valve and the necessary plugs. Everything went together fine. One small issue is that the actual delivery date was a week later than estimated when I purchased.
Sections: 12 | Size (D X H): 4-1/2" x 25"
By Daniel (from Williamstown, MA) on 10/24/2022
Helpful? Yes No
Verified Purchase
Fast and easy
Didn’t believe they could get the radiator to my home in 3 days… but they did.
Sections: 8 | Size (D X H): 4-1/2" x 19"
By Jean-Paul (from Pittsfield, MA) on 10/12/2022
Helpful? Yes No
Verified Purchase
Pee-Yew!
The radiator came quickly and is exactly as described. The local heating/plumbing guys (Keeler Services) installed it with no problem, except for finding the right size plugs for the many unused openings. But the house stank for days afterwards from the smell given off. I guess there is some sort of anti-rust coating that causes it. I do sort of wish that they had larger ones. This is about 1/2 the size of the one it replaced.
Sections: 16 | Size (D X H): 4-1/2" x 25"
By Eric (from Hammondsport, NY) on 04/19/2022
Helpful? Yes No
Verified Purchase
Radiator
Have not installed yet but looks good.
Sections: 4 | Size (D X H): 6-7/8" x 25"
By Paul (from Bradford, PA) on 02/12/2022
Helpful? Yes No
Verified Purchase
Radiator
Awesome product and incredible service.
Sections: 12 | Size (D X H): 4-1/2" x 19"
By Michael (from Schenectady, NY) on 02/12/2022
Helpful? Yes No
Verified Purchase
Fit and finish
Radiator had a bit if sharpness on the parting line of each segment. Pretty sharp. I took a 4" grinder to it and in less than 5 minutes smoothed it out and had it prepped it for paint. Otherwise no issues. Very satisfied.
Sections: 10 | Size (D X H): 4-1/2" x 25"
By John (from Mount pleasant, WI) on 11/23/2021
Helpful? Yes No
Verified Purchase
HHH
Product did not arrive as quickly as advertised. Seems fine otherwise.
Sections: 6 | Size (D X H): 4-1/2" x 25"
By Timothy (from Womelsdorf, PA) on 10/31/2021
Helpful? Yes No
Verified Purchase
First one
First time ever. Need to plumb and will be good to go.
Sections: 6 | Size (D X H): 4-1/2" x 25"
By Steven (from El rito, NM) on 10/17/2021
Helpful? Yes No
Verified Purchase
Very good pricing and shipping
Haven't installed this yet, but quality seems good - just a couple of small burrs sticking out that I filed down to avoid anyone scratching themself on it - and the price was very reasonable what with free shipping. I am still seeking advice on how best to remove one 1/8" plug to install a steam air vent; it's not apparent what tool to use.
Sections: 8 | Size (D X H): 4-1/2" x 25"
By Paul (from Nashua, NH) on 08/12/2021
Helpful? Yes No
Verified Purchase
Easy shopping
Great product at a great price!
Sections: 4 | Size (D X H): 4-1/2" x 19"
By Charles (from Lindenhurst, NY) on 04/01/2021
Helpful? Yes No
Verified Purchase
Small, effective, affordable
I'm using this unit in a bathroom to replace an old radiator that had begun to malfunction. It heats the area nicely.
Sections: 10 | Size (D X H): 4-1/2" x 19"
By Kory (from Providence, RI) on 03/22/2021
Helpful? Yes No
Verified Purchase
Cast iron rad
Not in yet but was packaged well. Fast shipping. We will see how it holds water:)
Sections: 16 | Size (D X H): 4-1/2" x 25"
By John (from White sulphur springs, WV) on 02/08/2021
Helpful? Yes No
Verified Purchase
Radiator
Exact I want. Thank you very much.
Sections: 4 | Size (D X H): 4-1/2" x 19"
By Julio J (from Everett, MA) on 01/29/2021
Helpful? Yes No
Verified Purchase
CAST IRON RADIATOR
SEEMS TO BE A NICE RADIATOR,SERVICE WAS GOOD, AND FREE SHIPPING WAS NICE
Sections: 4 | Size (D X H): 4-1/2" x 25"
By JOHN (from Zanesville, OH) on 12/18/2020
Helpful? Yes No
Verified Purchase
radiator
a-one
Sections: 16 | Size (D X H): 4-1/2" x 19"
By WILLIAM E (from Fort edward, NY) on 12/13/2020
Helpful? Yes No
Verified Purchase
They look great.
Shipping was fast, and they look great. They aren't installed yet so I can't comment on how they work.
Sections: 6 | Size (D X H): 4-1/2" x 19"
By Oliver (from Nashua, NH) on 11/27/2020
Helpful? Yes No
Verified Purchase
Free standing cast iron radiator
I purchased the radiator for a bathroom in my old house because my wife was remodeling and needed more room. It was delivered on time and worked great..
Sections: 8 | Size (D X H): 4-1/2" x 25"
By Greg (from Norfolk, VA) on 10/01/2020
Helpful? Yes No
Verified Purchase
Great product
Great product, packaged well
Sections: 12 | Size (D X H): 4-1/2" x 19"
By Alan (from Virginia, MN) on 09/08/2020
Helpful? Yes No
Verified Purchase
Lincoln Rhode Idland
Good quality product, doing the job well, easy install in limited space.
Sections: 6 | Size (D X H): 4-1/2" x 19"
By Mark (from Lincoln, RI) on 12/03/2019
Helpful? Yes No
Verified Purchase
Hot water
Getting ready install my purchase over the weekend They will make my basement toasty for the winter Good solid product
Sections: 4 | Size (D X H): 4-1/2" x 19"
By Charles (from Port jervis, NY) on 10/31/2019
Helpful? Yes No
Verified Purchase
A little wabbly
Radiator was just a little wobbly. Some felt under the legs took care of it. Other than that, its a solid radiator. I wish it would have been flushed with a rust inhibitor before it left the factory. Would have made my life easier.
Sections: 16 | Size (D X H): 4-1/2" x 19"
By John (from Bellingham, WA) on 10/11/2019
Helpful? Yes No
Verified Purchase
Cute Little Radiator
Radiator came primed and threads were greased. Met my expectations for a foreign made product. I wish they would have flushed it with a rust inhibitor, but you can only ask so much for this price.
Sections: 4 | Size (D X H): 4-1/2" x 19"
By John (from Bellingham, WA) on 10/11/2019
Helpful? Yes No
Verified Purchase
.
Great product, fast delivery
Sections: 16 | Size (D X H): 4-1/2" x 25"
By Fabian (from El paso, TX) on 03/09/2019
Helpful? Yes -3 No
Verified Purchase
Returned
It was the wrong size. It was my mistake
Sections: 8 | Size (D X H): 4-1/2" x 19"
By Cynthia (from Schenectady, NY) on 01/14/2024

FAQs (1)

Ask a Question
dose this radiator have openings at each end. or just top and bottom.
Helpful? Yes 2 No
Both sides have top and bottom connections for hot water or steam (2 x on ea. side = 4 connections total) - unused outlets would have to be plugged with black plug fittings. Also, only 1 side (pictured) has air valve/vent tappings, which are factory-plugged and can be removed with a hex key.
By PexUniverse Customer Service on 11/11/2019
