1" IPS x 300ft Yellow PE Gas Pipe for Underground Use, SDR-11 Oil Creek Plastics
1" IPS x 300ft Yellow PE Gas Pipe for Underground Use, SDR-11
Brand: Oil Creek Plastics
Part#: PEIPS-01300
In Stock
Ship Pickup
Estimate delivery
Usually ships: within 1 business day
Pick Up available
$330.95 / each
$1,243.80 box of 4
($310.95 each)
Free Shipping on any qty
Add to Cart

Description

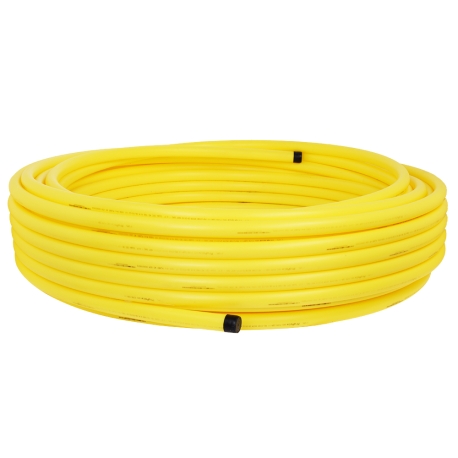

300ft roll of 1" IPS (SDR-11) yellow MDPE (Medium Density Polyethylene) gas pipe for outdoor, underground distribution of natural and propane gas.

Features:
  • Designed, certified and tested for direct underground burial
  • Flexible, requires little or no fittings to install
  • Continuous lengths minimize labor and potential leak points
  • Compatible with multiple fitting options
  • Barcoded and marked every 2ft with size, standards, approvals, mfr data, etc.
  • Made in the USA

Technical Specifications:
  • Size: 1" IPS (SDR-11)
  • Outside Diameter (OD): 1.315"
  • Minimum Wall Thickness: 0.120"
  • Length: 300ft
  • Approx. weight: 60 lbs
  • Color: Yellow
  • Material: Medium Density Polyethylene - MDPE (PE 2708)
  • Max. operating pressure: 125 psi
  • Operating temperature range: -20°F - 180°F
  • Minimum bending radius: 32-3/4" (permanent); 17-1/8" (temporary)
  • Applications: Underground, outdoor distribution of Natural Gas & Propane
  • Fitting compatibility: Compression, Con-Stab (push-fit style) and Fusion
  • Manufactured to: ASTM D2513 standard
  • Code Compliance: NFPA 54 /ANSI Z223.1 (National Fuel Gas Code), ICC (International Fuel Gas, Building and Mechanical Codes), IAPMO (UPC & UMC)
  • Marked every 2ft with size, standards & approvals, barcode, mfr data and footage
