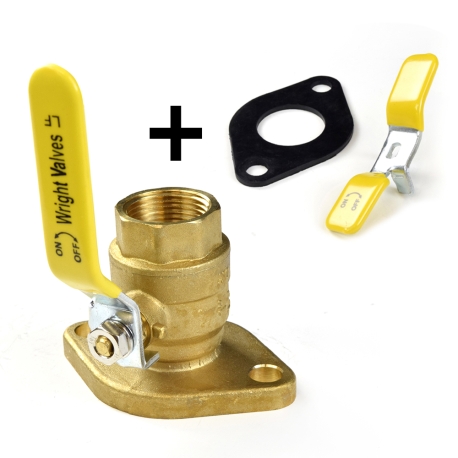

1" Threaded Isolator Flange Valve w/ Pump Gasket & T-Handle
Brand: Wright Valves
Part#: FVT2-100
In Stock
Ship Pickup
Estimate delivery
Usually ships: within 1 business day
Pick Up available
$27.95 / each
$257.00 box of 10 + Free Shipping
($25.70 each)
Add to Cart
Orders over $99 ship free

Description

Pump isolation flange valves offer a quick and easy way to isolate a circulator pump for service, replacement or repair without draining and re-filling the entire system. These valves are compatible with most circulators, including:
Grundfos: UP15, UPS15, UP26, UPS26 and Alpha series;
Taco: 005, 006, 007, 008, 009, 0010, 0011, 0013, 0014,Viridian and other model circulator pumps;
As well as most B&G, Wilo and Armstrong circulator pumps.

Features:
  • Includes universal circulator pump gasket
  • Uni-body design
  • Universal compatibility
  • Heavy-duty forged brass body
  • Full port design
  • 1/4-turn, rubber coated reversible steel handle (+additional T-handle)
  • High quality PTFE seats
  • Adjustable packing nut
  • Blowout-proof stem.

Technical Specifications:
  • Pressure Rated: 400 WOG
  • Inlet Connection: Standard Flange (3-1/8" On Center Holes)
  • Outlet Connection: 1" FNPT
  • Each set includes: (1) Isolator Flange Valve, (1) Gasket, (2) Bolts and (2) Nuts, (1) T-handle
