1" PEX Plastic Bend Support w/ Ear Everhot
1" PEX Plastic Bend Support w/ Ear Everhot
1" PEX Plastic Bend Support w/ Ear Everhot

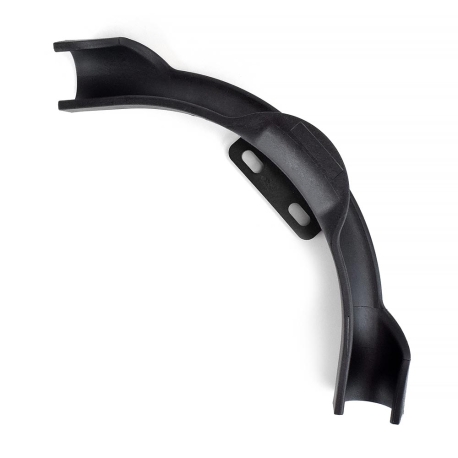

1" PEX Plastic Bend Support w/ Ear
Brand: Everhot
Part#: PXA4231
In Stock
Ship Pickup
Estimate delivery
Usually ships: within 1 business day
Pick Up available
$3.65 / each
$30.50 box of 10
($3.05 each)
Add to Cart
Orders over $99 ship free

Description

Plastic Bend supports are used to make a smooth 90-degree turn with PEX tubing where needed. They are also commonly used to stub out of the walls. Manufactured from fiber-reinforced nylon for extra durability and holding power. Simply lock the tubing inside the bend support and done. Features a drop ear that allows installer to fasten the bend support to wooden surfaces (studs, joists, plywood, etc.) 1" PEX bend supports can also be used with 3/4" PEX tubing.


Features:
  • Costs less than a PEX fitting with rings and saves installation time
  • Very low pressure drop comparing to a regular PEX elbow
  • Drop ear allows to secure bend support to a stud or other wooden surface
  • Non-abrasive and non-corrosive
Write a Review
Helpful? Yes 4 No
Verified Purchase
Difficult to use
Works OK but had to use Zip ties to keep the pex in the clips. working with 3/4" pex is like wrestling a snake, these make for a nice installation but are difficult to keep the pex in.
Size: 3/4"
By Verified Buyer on 09/02/2015
Helpful? Yes 2 No
Verified Purchase
"Turning corners"
The bend supports are constructed well. When slipping in the pipe it wants to come back out of the bend support. I'm using tie wraps in conjunction with the supports to help keep the pipe in place. I do like the smooth bends.
Size: 3/4"
By Verified Buyer (from Texas) on 07/30/2016
Helpful? Yes 2 No
Pex Support bracket
"Support works great, needed to heat pex line with a hair dryer to make bend easier."
Size: 1"
By Kent (from Lafayette IN) on 12/15/2011
Helpful? Yes 1 No
Verified Purchase
Kinks Pex-A
Solid design, but the radius of curvature was too tight and it kinked the 1” Pex-A, reducing the inner volume in a single spot. Opted to not use this device at all, used elbows instead.
Reply from PexUniverse:
We've tested this exact bend support with 1" PEX-A tubing we carry (part# 665XA4N100) following your review, and in all instances the tubing fit in the bend support without kinking. We've been selling both products for years and had no complaints about either one. In fact, we source PXA4231 from a German manufacturer due to better quality (thicker, more robust, smoother surface, better overall attention to details). A bend support will certainly somewhat deform the otherwise round shape of the pipe, but not to the point of kinking it or significantly affecting the water flow rate.
Size: 1"
By Cole (from Tehachapi, CA) on 08/18/2020
Helpful? Yes 1 No
Verified Purchase
works great
Other than 1" pex is very difficult to work with this product is great.
Size: 1"
By Verified Buyer on 09/11/2015
Helpful? Yes 1 No
Verified Purchase
Great product and low price.
Great product and low price.
Size: 1/2"
By Verified Buyer (from WV) on 04/02/2015
Helpful? Yes 1 No
Verified Purchase
great for Joist Installation
This product works well for a floor joist installation. My installation was slab on grade and thesedidn't work for this but I will use them when I do my other floor.
Size: 1/2"
By ken u. (from ocean park , WA) on 03/01/2013
Helpful? Yes 1 No
Best price but make sure you have some duct tape
Pipe easily pops out so you need a little duct tape to hold it in but for the price this a good deal so little duct tape is no big deal.
Size: 3/4"
By Larry w. (from Ann Arbor) on 01/31/2013
Helpful? Yes 1 No
Would buy this again
Using this reduces the restriction that a tee produces. It increased the efficiency of my radiant floor heat.
Size: 3/4"
By Diesel (from Okla) on 02/02/2012
Helpful? Yes No
Verified Purchase
Can't go wrong
All products i have ever ordered fit the bill and were delivered in time
Size: 1/2"
By Robert (from Bertram, TX) on 07/05/2024
Helpful? Yes No
Verified Purchase
Abc
Worked great
Size: 1/2"
By steven (from Westport, MA) on 03/29/2023
Helpful? Yes No
Verified Purchase
Sturdy well Made
This bend support keeps our work looking professional. we find them well-made and sturdy.
Size: 3/4"
By Thomas (from Horse creek, CA) on 12/20/2022
Helpful? Yes No
Verified Purchase
A
Strong, good material, not that hard to remove the mounting ear is needed. I'm glad I got extras.
Size: 1/2"
By Susan (from Woodbridge, VA) on 11/26/2022
Helpful? Yes No
Verified Purchase
Perfect fit
Hard to find part was easy from Pex Universe!
Size: 1"
By Brian (from Dove canyon, CA) on 01/08/2022
Helpful? Yes No
Verified Purchase
Fast service
Order was fulfilled fast and delivered quickly
Size: 1/2"
By Kristopher (from Fenelton, PA) on 09/10/2021
Helpful? Yes No
Verified Purchase
Plumbing Washington State
Fast & Free Shipping!! We will be ordering more items soon.
Size: 3/4"
By Michael (from Tacoma, WA) on 08/02/2021
Helpful? Yes No
Verified Purchase
Perfect
What can I say does a great job of supporting the pex
Size: 1/2"
By Christopher (from Sandwich, MA) on 06/16/2021
Helpful? Yes No
Verified Purchase
Works well, but...
They work well, but the ends don't always hold on to the pipe. Easy solve is to use zip ties to keep the pipe in the bracket.
Size: 1/2"
By William (from Hillside, IL) on 02/01/2021
Helpful? Yes No
Verified Purchase
Perfect PEX
The 90 bend support is strong and durable. Works to hold the PEX in a 90 deg bend.
Size: 1"
By Michael (from Canyon lake, TX) on 11/06/2020
Helpful? Yes No
Verified Purchase
Shipping
Shipping was faster than expected.
Size: 3/4"
By Filemon (from Glenmoore, PA) on 06/05/2020
Helpful? Yes No
Verified Purchase
helps with the bends
3/4" PEX is pretty stiff. These supports help hold the bends in place.
Size: 3/4"
By Phillip (from Ironwood, MI) on 02/27/2020
Helpful? Yes No
Verified Purchase
Pex 1/2 bends
Excellent quality and work well.
Size: 1/2"
By Gerard (from Bloomfield, NJ) on 02/12/2020
Helpful? Yes No
Verified Purchase
pex bend support
as ordered
Size: 1/2"
By RICK (from Royse city, TX) on 12/20/2019
Helpful? Yes No
Verified Purchase
They work
These things are nice if you want to reduce flow resistance. They don’t play well with 1” pex-c though. It was a real fight to get the tube in and make it stay correctly.
Size: 1"
By Eric (from Mount joy, PA) on 12/19/2019
Helpful? Yes No
Verified Purchase
Works great!
Was a little difficult to figure out how to get 1" pex to make the bend without kinking, but it will bend and this support holds great!
Size: 1"
By Jeff (from Commerce city, CO) on 11/19/2019
Helpful? Yes No
Verified Purchase
Great quality
Great quality for price
Size: 1/2"
By Lucas (from Russell, NY) on 10/22/2019
Helpful? Yes No
Verified Purchase
plastic ?
Worked great and cost effective, thanks.
Size: 1/2"
By Charles (from Center ossipee, NH) on 07/24/2019
Helpful? Yes No
Verified Purchase
GOOD JOB
PROMPT AND COMPLETE
Size: 1"
By Herb (from Otis, OR) on 06/17/2019
Helpful? Yes No
Verified Purchase
Great quality
The supports are made of a high grade plastic that resists deformation.
Size: 3/4"
By Lawrence (from Clinton, IL) on 05/20/2019
Helpful? Yes No
Verified Purchase
pex support
worked fine1
Size: 3/4"
By Arlie (from Troy, KS) on 05/03/2019
Helpful? Yes No
Verified Purchase
Nice doing business with you...
Very nice.
Size: 3/4"
By Edilson A. (from Malden, MA) on 03/24/2019
Helpful? Yes No
Verified Purchase
get ready to wrestle
No fault of this product just cold stiff pex. But saves a 90 and 2 rings
Size: 3/4"
By Tom (from Indianapolis, IN) on 03/13/2019
Helpful? Yes No
Verified Purchase
1" PEX Plastic Bend Support w/ Ear
Fits the pipe perfectly and lets you attach it firmly to the wall. Solid and rugged construction.
Size: 1"
By Emanuel (from Seattle, WA) on 11/21/2018
Helpful? Yes No
Verified Purchase
home depot sells same one under apollo brand
works fine for aquapex. it's interesting that home depot sells exactly same item in my store. ohh well
Size: 3/4"
By James (from East windsor, CT) on 11/13/2018
Helpful? Yes No
Verified Purchase
Great product and low price.
Worked well and had no problems.
Size: 3/4"
By Verified Buyer on 07/11/2016
Helpful? Yes No
Verified Purchase
Great product and low price.
Great product and low price.
Size: 3/4"
By Verified Buyer (from WV) on 04/02/2015
Helpful? Yes No
Verified Purchase
inexpensive
simple, inexpensive. Compared to some of the big box places, a lot cheaper. when mounting it doesn't exactly work with a drywall/deck screw but easy enough to fix
Size: 1/2"
By jeff (from Cincinnati, OH) on 08/27/2012
Helpful? Yes No
Good easy to use supports.
simple, inexpensive, easy to use....
Size: 1/2"
By HandyManny (from NJ) on 05/03/2011
Helpful? Yes -1 No
Verified Purchase
Junk
The sides aren't high enough to keep the pipe in the support...the pipe has too much memory and keeps jumping out. Look elsewhere.
Size: 3/4"
By carl (from Sylvania, OH) on 01/19/2021
Helpful? Yes -1 No
Verified Purchase
ditto
ditto
Size: 1/2"
By James (from Webster, WI) on 12/22/2019

FAQs (1)

Ask a Question
can they handle 180 degree F tubing temperature?
Helpful? Yes No
Yes, when used with PEX tubing. Water inside the pipe can be as high as 180F.
By PexUniverse Customer Service on 12/30/2022
