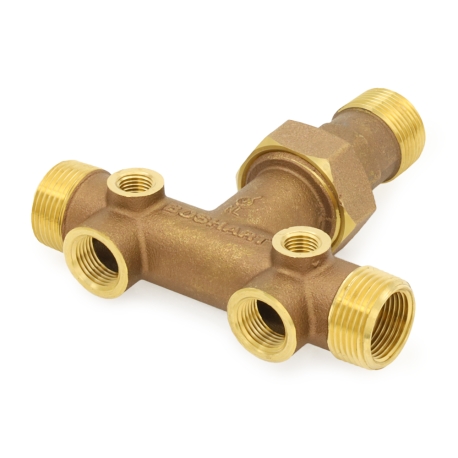

1" MPT x 4-1/2" Union Brass Short Well Tank Tee (Lead-Free)
Brand: Boshart
Part#: 2-07TKO-25S-2UNL
In Stock
Ship Pickup
Estimate delivery
Usually ships: within 1 business day
Pick Up available
$23.95 / each
Add to Cart
Orders over $99 ship free

Description

Lead-free brass well tank tee with Union, 1" male NPT threaded tank connection, 1" MNPT (3/4" FNPT inside) inlet/outlet ports, (2) 1/4" FNPT accessory ports (for pressure switch and pressure gauge) on top and (2) 1/2" FNPT ports (for pressure relief valve & drain valve) at the front. It has a center-to-end length of 4-1/2" and an overall length of ~5".
This well tank tee model is a "Short" type and is intended for well tanks which have a connection which protrudes beyond the base (skirt) of the tank and is visible from the outside.
It is also suitable for direct connection to in-line (non standing - system mount or horizontal) tanks, such as Well-X-Trol WX-104/200/200UG/202UG/200PS/202PS/202H and similar.

Features:
  • Short design commonly used for well tanks with connection protruding from the base
  • Union fitting assembly with integrated EPDM O-ring makes installation quicker, easier and more reliable
  • Lead-free brass, NSF/ANSI 372 listed
  • Features (2) drain ports (for temperature gauge and pressure switch), (2) accessory ports (for pressure relief valve and drain valve), (2) in-line connection ports (water inlet and outlet ports) and (1) well water tank connection
  • Threads made to ANSI/ASME B1.20.1

Technical Specifications:
  • Material: Lead-Free Brass
  • Center-to-End Length: 4-1/2"
  • Overall Length:
  • Tank Connection: 1" MPT
  • In-Line Tee Connections: 1" MPT x 3/4" FPT
  • Drain/PRV Ports: (2) 1/2" FPT
  • Top/Accessory Ports (Gauge & Pressure Switch): (2) 1/4" FPT
  • Max. Operating Pressure: 200 psi
