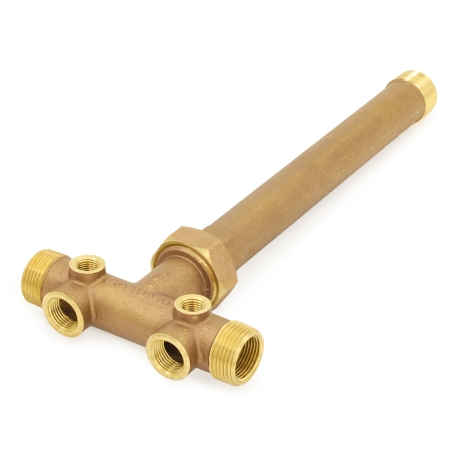

Lead-free brass, Union-type well tank tee with 1" male NPT threaded tank connection, 1" MNPT (3/4" FNPT inside) inlet/outlet ports, (2) 1/4" FNPT accessory ports (for pressure switch and pressure gauge) on top and (2) 1/2" FNPT ports (for pressure relief valve & drain valve) at the front. It has a center-to-end length of 13" and an overall length of ~13-1/2". This well tank tee model is a "Standard/Long" type, intended for well tanks with an elbow fitting at the bottom of the tank (such as Well-X-Trol by Amtrol), but is also suitable for tanks with an extended connection. For Well-X-Trol type tanks, the maximum tank diameter is 22" (WX-205/250/251/252/255/250UG/251UG & other smaller models). Union style connection simplifies installation and allows for easy tank replacement without removing components. Note: many tanks with 22"+ diameter have 1-1/4" NPT connection - be sure to check the tank inlet connection and use a reducer bushing (such as part# XNL114-2016 or similar) if needed.
Features:
Fits well tanks (incl. Well-X-Trol by Amtrol) with diameter up to 22"
Union fitting assembly with integrated EPDM O-ring makes installation quicker, easier and more reliable
Lead-free brass, NSF/ANSI 372 listed
Features (2) drain ports (for temperature gauge and pressure switch), (2) accessory ports (for pressure relief valve and drain valve), (2) in-line connection ports (water inlet and outlet ports) and (1) well water tank connection
