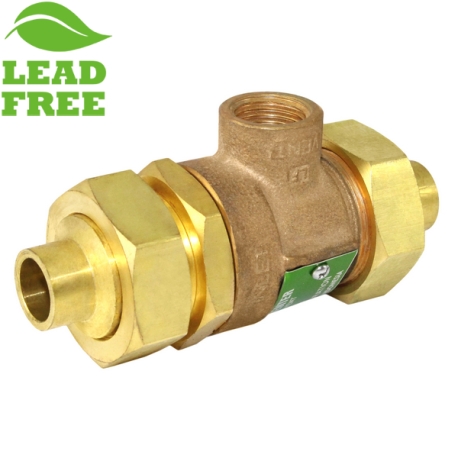

1/2" Union Sweat Dual Check Backflow Preventer Valve w/ Atmospheric Vent (Lead-Free) Matco-Norca
1/2" Union Sweat Dual Check Backflow Preventer Valve w/ Atmospheric Vent (Lead-Free)
Brand: Matco-Norca
Part#: BFP-90-12CLF
In Stock
Ship Pickup
Estimate delivery
Usually ships: within 1 business day
Pick Up available
$43.55 / each
$165.40 box of 4 + Free Shipping
($41.35 each)
Add to Cart
Orders over $99 ship free

Description

Features: Atmospheric Vent;

Connections: Union Connections on both sides, 1/2" Sweat

Standards: ASSE Standard 1012 and UPC / IAPMO


Technical Specifications:
  • Maximum Operating Pressure: 175 PSI
  • Maximum Operating Temperature: 250 F
  • Materials of Construction: Bronze Body, Stainless Steel Internal Parts

Documents

Write a Review
Helpful? Yes 1 No
1/2 inch backflow preventer
My original valve had stared to leak a lot, the dripping from the vent was increasing . A rebuild kit for this valve was double the cost of a new replacement valve model BFP-90-1/2 from Pex Universe. Installation was easy with a few common tools and some teflon tape for the threaded parts. A few drops of water escaped from the vent when i turned the water supply back on to my boiler but that is normal and i checked again several days later and the new valve is working perfectly. This backflow preventer appears to be well made and heavily constructed as well if not better than the original. It is solidly built of brass/bronze and a few internal stainless steel components. I opted for a new unit rather than rebuild my old unit after reading about the units that continue to leak after being rebuilt.
Size: 1/2" | Connections: Threaded, FNPT Union x FNPT Union
By Paul H. (from Port Allegany, PA) on 06/08/2012
Helpful? Yes 1 No
Very heavy, and bulky
"Too heavy for a 1.2"" pipe. I need to return it."
Size: 1/2" | Connections: Threaded, FNPT Union x FNPT Union
By Tony (from Washington, DC) on 09/02/2011
Helpful? Yes No
Verified Purchase
First one lasted five years
I just had to replace one of these used on the make-up water supply of an on-demand boiler in a radiant heat system. I wish it lasted longer, but given how hard our water is here, five years is not bad.
Size: 1/2" | Connections: Sweat, Sweat Union x Sweat Union
By Lafe (from Palisade, CO) on 11/27/2020
Helpful? Yes No
Verified Purchase
Hydronic
1 to 10, 10 being the highest you got a 10
Size: 3/4" | Connections: Threaded, FNPT Union x FNPT Union
By David (from Plainfield, NJ) on 03/17/2019

FAQs (1)

Ask a Question
What is supposed to thread into the top port?
Helpful? Yes No
It's actually a bottom port, the picture is done so as to show it better. It is a vent opening (standard on all such backflow devices), into which a piece of pipe is threaded to discharge the water in the event of backflow or device malfunction.
By PexUniverse Customer Service on 01/03/2020
