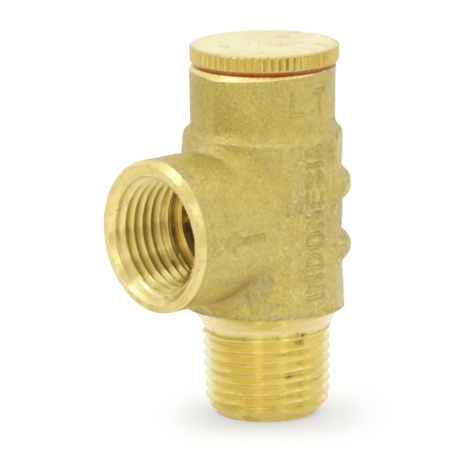

1/2" MPT, Pressure Relief Valve 75 psi (Lead-Free)
Brand: Boshart
Part#: RVNB05-075NL
In Stock
Ship Pickup
Estimate delivery
Usually ships: within 1 business day
Pick Up available
$8.95 / each
$79.50 box of 10
($7.95 each)
Add to Cart
Orders over $99 ship free

Description

75 psi fixed (non-adjustable) pressure relief valve with 1/2" MNPT inlet x 1/2" FPNT discharge connections.
Made from lead-free brass.
Note: this is not a T&P (Temperature & Pressure) relief valve and is not for use with boilers, water heaters, etc. - this product is for cold water applications only (water wells, irrigation, agricultural, etc.).

Features:
  • For use in cold water applications, including well water pressure tank systems
  • Protects pipes, system components and pressure tank from overpressure
  • Lead-free brass, NSF/ANSI 372 listed
  • Threads made to ANSI/ASME B1.20.1 standard

Technical Specifications:
  • Pressure Relief Setting: 75 psi (fixed, non-adjustable), +/- 15% accuracy
  • Inlet Connection: 1/2" MNPT
  • Outlet (Discharge) Connection: 1/2" FNPT
  • Operating Temperature Range: 40 - 160°F
