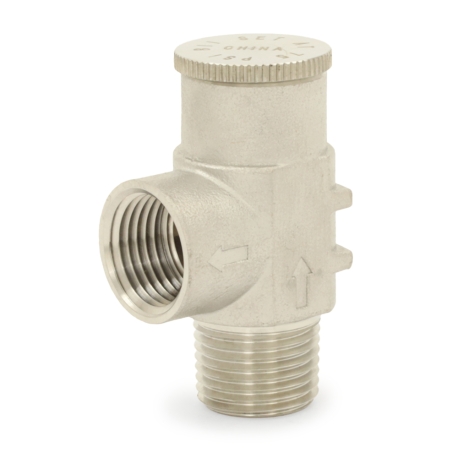

1/2" MPT, 304 St. Steel Pressure Relief Valve 75 psi (Lead-Free)
Brand: Boshart
Part#: SSRVN05-075
In Stock
Ship Pickup
Estimate delivery
Usually ships: within 1 business day
Pick Up available
$14.95 / each
$134.50 box of 10 + Free Shipping
($13.45 each)
Add to Cart
Orders over $99 ship free

Description

75 psi fixed (non-adjustable) pressure relief valve with 1/2" MNPT inlet x 1/2" FPNT discharge connections.
Made from lead-free 304 stainless steel.
Note: this is not a T&P (Temperature & Pressure) relief valve and is not for use with boilers, water heaters, etc. - this product is for cold water applications only (water wells, irrigation, agricultural, etc.).

Features:
  • For use in cold water applications, including well water pressure tank systems
  • Protects pipes, system components and pressure tank from overpressure
  • 304 Stainless Steel is lead-free, offers superior corrosion resistance and 100% resistance to dezincification
  • Threads made to ANSI/ASME B1.20.1 standard
  • Listed to NSF/ANSI 372

Technical Specifications:
  • Pressure Relief Setting: 75 psi (fixed, non-adjustable), +/- 15% accuracy
  • Inlet Connection: 1/2" MNPT
  • Outlet (Discharge) Connection: 1/2" FNPT
  • Max. Operating Temperature: 248°F
  • Materials: 304 Stainless Steel components, NBR seat, PTFE packing
