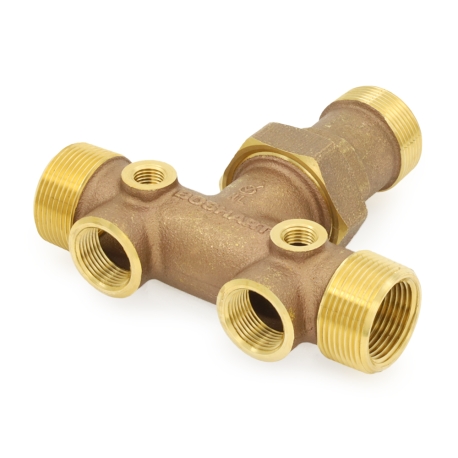

1-1/4" MPT x 4-1/2" Union Brass Short Well Tank Tee (Lead-Free)
Brand: Boshart
Part#: 2-07TKO-13S-2UNL
In Stock
Ship Pickup
Estimate delivery
Usually ships: within 1 business day
Pick Up available
$40.95 / each
Add to Cart
Orders over $99 ship free

Description

Lead-free brass, Union-type well tank tee with 1-1/4" male NPT threaded tank connection, 1-1/4" MNPT (1" FNPT inside) inlet/outlet ports, (2) 1/4" FNPT accessory ports (for pressure switch and pressure gauge) on top and (2) 3/4" FNPT ports (for pressure relief valve & drain valve) at the front. It has a center-to-end length of 4-1/2" and an overall length of ~5-1/4".
This well tank tee model is a "Short" type and is commonly used for well tanks which have a connection which protrudes beyond the base (skirt) of the tank and is visible from the outside.
It also can be used in combination with an extension pipe nipple and a coupling to connect to a large diameter standing type tank.
1-1/4" connection is ideal for larger size well tanks to allow for higher flow rates with minimal pressure drop.

Features:
  • Short design commonly used for well tanks with connection protruding from the base
  • Union fitting assembly with integrated EPDM O-ring makes installation quicker, easier and more reliable
  • 1-1/4" connections for higher flow rate
  • Lead-free brass, NSF/ANSI 372 listed
  • Features (2) drain ports (for temperature gauge and pressure switch), (2) accessory ports (for pressure relief valve and drain valve), (2) in-line connection ports (water inlet and outlet ports) and (1) well water tank connection
  • Threads made to ANSI/ASME B1.20.1

Technical Specifications:
  • Material: Lead-Free Brass
  • Center-to-End Length: 4-1/2"
  • Overall Length:
  • Tank Connection: 1-1/4" MPT
  • In-Line Tee Connections: 1-1/4" MPT x 1" FPT
  • Drain/PRV Ports: (2) 3/4" FPT
  • Top/Accessory Ports (Gauge & Pressure Switch): (2) 1/4" FPT
  • Max. Operating Pressure: 200 psi
