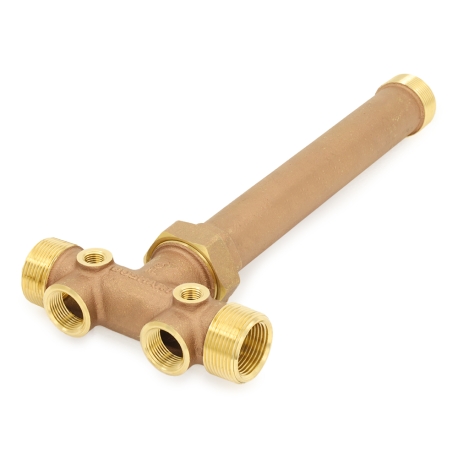

Lead-free brass, Union-type well tank tee with 1-1/4" male NPT threaded tank connection, 1-1/4" MNPT (1" FNPT inside) inlet/outlet ports, (2) 1/4" FNPT accessory ports (for pressure switch and pressure gauge) on top and (2) 3/4" FNPT ports (for pressure relief valve & drain valve) at the front. It has a center-to-end length of 13" and an overall length of ~13-3/4".
This well tank tee model is a "Standard/Long" type, intended for well tanks with an elbow fitting at the bottom of the tank (such as Well-X-Trol by Amtrol), but is also suitable for tanks with an extended connection.
For Well-X-Trol type tanks, the maximum tank diameter is 22" (WX-205/250/251/252/255/250UG/251UG & other smaller models).
1-1/4" connection is ideal for larger tanks and allows for higher flow rates with minimal pressure drop.
Features: - Fits well tanks (incl. Well-X-Trol by Amtrol) with diameter up to 22"
- Union fitting assembly with integrated EPDM O-ring makes installation quicker, easier and more reliable
- 1-1/4" connections for higher flow rate
- Lead-free brass, NSF/ANSI 372 listed
- Features (2) drain ports (for temperature gauge and pressure switch), (2) accessory ports (for pressure relief valve and drain valve), (2) in-line connection ports (water inlet and outlet ports) and (1) well water tank connection
- Threads made to ANSI/ASME B1.20.1
- Material: Lead-Free Brass
- Center-to-End Length: 13"
- Overall Length:
- Tank Connection: 1-1/4" MPT
- In-Line Tee Connections: 1-1/4" MPT x 1" FPT
- Drain/PRV Ports: (2) 3/4" FPT
- Top/Accessory Ports (Gauge & Pressure Switch): (2) 1/4" FPT
- Max. Operating Pressure: 200 psi
