Alpha2 15-55F/LC Variable Speed Circulator Pump w/ IFC, Line Cord, 1/16 HP, 115V
Brand: Grundfos
Part#: 99163906
Model: Alpha2 15-55F/LC
This product has been discontinued.
Direct Replacement:
SKU: 99285998
Brand: Grundfos
Grundfos

Description

Alpha2 15-55F/LC model is a cast iron variable speed circulator with Line Cord & AutoADAPT feature, designed for use in a variety of hydronic and radiant heating applications.
Note: this model replaces older Alpha model 59896832.

Cross-References:
  • Grundfos: UP15-10F, UP15-42F, UPS15-42F, UPS15-58FC
  • Taco: 005-F2-2, 006-F7, 007-F5-5, 008-F6-1, 008-F6-3, 00R-F6-1, 0015-MSF3-1
  • B&G: NRF-25, NRF-9F/LW, Ecocirc 19-14 vario, Ecocirc 19-14 auto
  • Armstrong: Astro 230CI-R, Astro 250CI-R, Compass 20-20
  • WILO: Star S 16FX, Star S 21FX, Star S 21RFC, Stratos ECO 16 RFC

Features:
  • New and improved version of Grundfos bestselling Alpha circulator
  • AutoADAPT feature allows the circulator to adapt to changes in the hydronic system to maximize energy savings
  • Push button allows to select between AutoADAPT, constant speed (3 settings - Hi/Med/Low) or contant pressure (3 settings) modes
  • Large LED display
  • Built-in check valve

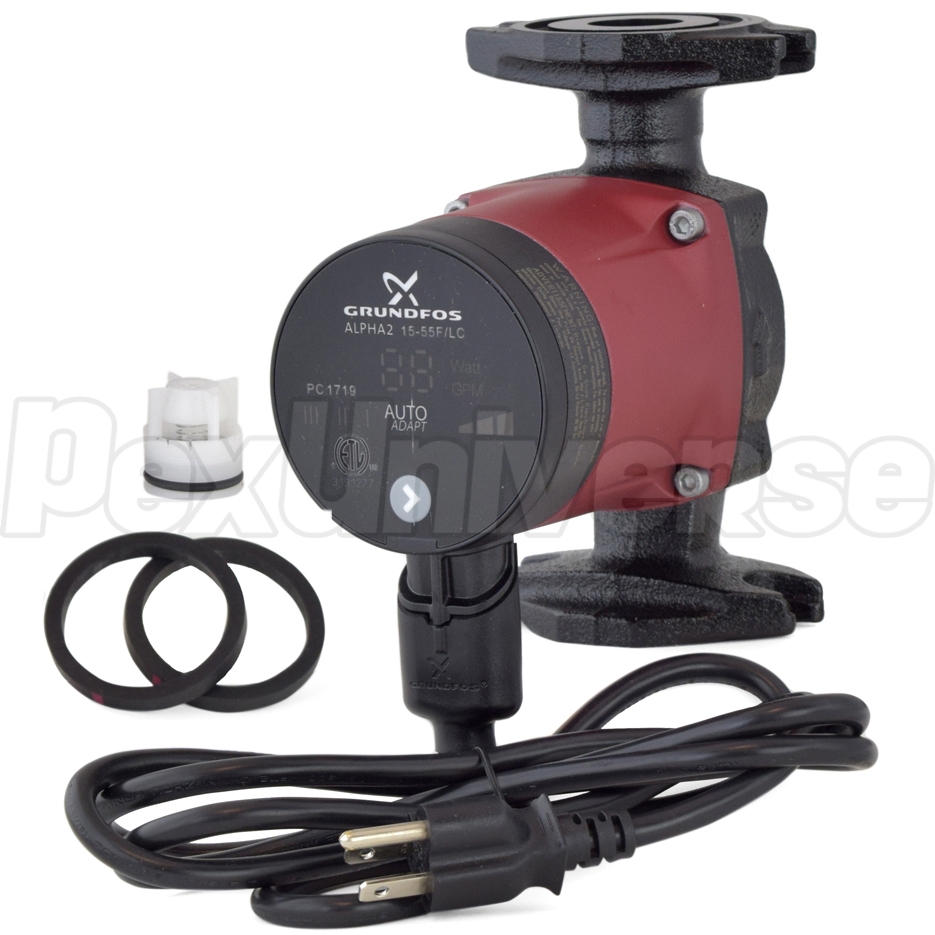

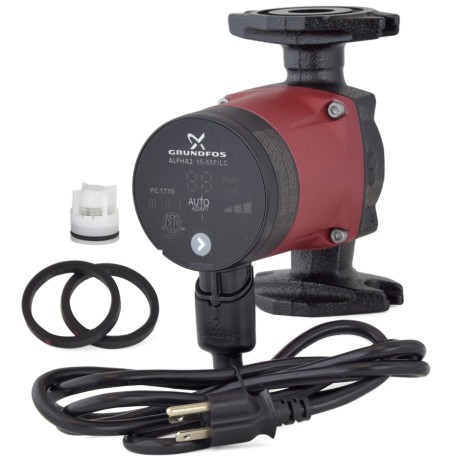

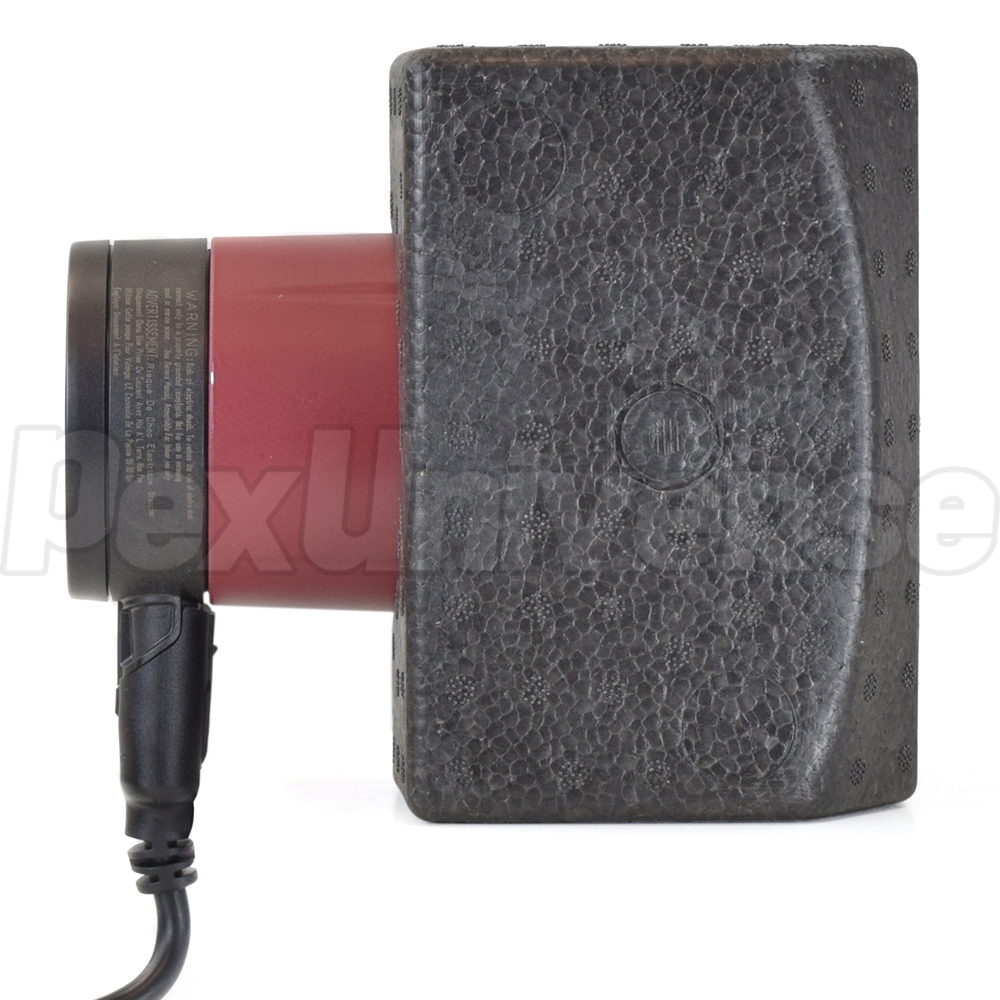

  • Insulation jacket and (2) gaskets (O-rings) included
  • Permanent magnet motor technology with robust startup enables pump to restart indefinitely when rotor is blocked
  • Cast iron body for closed-loop heating applications
  • Standard flange accepts Grundfos GF15/26 and other brand flanges
  • Model with US standard 3-prong Line Cord
  • Made in the USA.

Technical Specifications:
  • Voltage: 115V
  • Amperage: 0.65A
  • Hertz: 60
  • Phase: 1
  • Watts: 5 - 45W (depending on mode selected)
  • Wiring: Line Cord w/ Plug
  • Temperature Range: 36°F - 230°F
  • Max Pressure: 150 psi
  • Flow range: 0 - 21 GPM
  • Head Range: 0 - 19 ft of head
  • Material: Cast Iron
  • Application: Heating only.

Warranty:
1 year from the date of installation

Documents

Write a Review
Helpful? Yes 3 No
Verified Purchase
Quiet, Works Great, Low Watts!
Using on Pellet boiler/ Buffer tank loop. Pump runs 24 hours/ 7 days a week. Using about a 1/4 of the watts of the previous taco pump it replaced & just about pumping the same GPM. Saving about $11-12.00/month on electric bill Based on that pump will pay for itself in about a year. excellent product!
Pump Model: Rotated Flange
By Verified Buyer (from New Hampshire) on 03/30/2016
Helpful? Yes 3 No
Verified Purchase
Qite,easy to set and perform great
I had noisy radiant heating pump and needed something to replace it. Saw it in Uponor training and give it a try. It works nice with one loop as well as with 6 loops calling for heat. Great product. Great price and fast shipping
Pump Model: Rotated Flange
By Mich (from Los Angeles) on 12/19/2015
Helpful? Yes 3 No
Verified Purchase
High Tec pump
I guess the days of the basic circulator pump are gone. I like bells and whistles and this pump has them all. Easy install. After that the fun starts. This pump has seven modes. Three based on watts, three based on gph and an auto adapt mode. On auto adapt it will alternately display power use in watts and gph being pumped through the system. It's fun to watch. Seems to run fine. I have three pumps/zones active and one inactive connected to a Taco 4 zone controller. I would recommend this pump based on based on the five months they have been in service.
Pump Model: Standard
By MFParker (from Wayne, NJ) on 01/25/2014
Helpful? Yes 1 No
Verified Purchase
awesome
worked great, just installed it in a new system.
Pump Model: Standard
By shane (from Prole, IA) on 01/28/2020
Helpful? Yes 1 No
Verified Purchase
No problems
Lowest cost and received the new pump 2 days early with free shipping.
Pump Model: Rotated Flange
By Michael (from River forest, IL) on 08/20/2019
Helpful? Yes 1 No
Just remember
Make sure that you order the correct style. This pump has the rotated flange. Front to back as in the pic shown. If your bolts are on the sides (facing the pump body/display panel then order the other model.
Pump Model: Rotated Flange
By Myra (Steve) (from Chatham NJ) on 01/23/2019
Helpful? Yes 1 No
Verified Purchase
Great pump
After installing my radiant/hydronic system three years ago I have had problems with the Taco Hec-2 bumblebee pumps from day one. Two more crapped out. Before I found the Grundfos Alpha2 I replaced bumblebees with Taco/Viridian variable pump which is OK but the display is useles near the ground. Can’t see a thing and requires multiple steps to change and set up. The Alpha lets you change speeds on the fly and gives you readings on speed and wattage. Also, the Taco pumps are very buzzy, guess that’s why they call it the “bumblebee” I’d like to spray them all with bug killer. The Alpha2 is very quiet. So far I’m very happy.
Pump Model: Rotated Flange
By Myra (from Chatham, NJ) on 01/23/2019
Helpful? Yes No
Verified Purchase
Good service
Ver good
Pump Model: Standard
By Kevin (from Frenchville, ME) on 04/21/2024
Helpful? Yes No
Verified Purchase
Grundfos Alpha 2
The best circulation pumps on the planet.
Pump Model: Standard
By BRUCE (from Tabernash, CO) on 04/13/2024
Helpful? Yes No
Verified Purchase
Awesome pump
Great pump like the variable flow
Pump Model: Standard
By COREY (from Niagara falls, NY) on 10/02/2022
Helpful? Yes No
Verified Purchase
Works very well
These pumps work very well for my project. Each pump supplies fluid to zones in an in floor heating system. Virtually silent. Thermostat transformers make more noise than these pumps. The display data is very helpful in monitoring relative flow.
Pump Model: Standard w/ Line Cord
By Ricardo (from Veteran, WY) on 04/02/2022
Helpful? Yes No
Verified Purchase
Worked Perfectly
Easy to install, worked perfectly.
Pump Model: Rotated Flange
By Michael (from Jericho, VT) on 12/17/2021
Helpful? Yes No
Verified Purchase
Great Pump.
Good quality easy to install and saves energy.
Pump Model: Rotated Flange
By Kissinger (from Ayer, MA) on 01/12/2021
Helpful? Yes No
Verified Purchase
One of the best pumps Grundfos has come up with.
A pump you can adjust to meet your exact needs.
Pump Model: Standard
By Mark (from Sturgis, SD) on 12/08/2020
Helpful? Yes No
Verified Purchase
Efficient and quiet.
Quality piece of equipment.
Pump Model: Standard w/ Line Cord
By Michael (from Indianapolis, IN) on 11/25/2018
Helpful? Yes -1 No
Verified Purchase
Great Pump!
Works great for my outdoor pellet furnace! Better and a lot quieter than the Taco pump. Shipped super fast and easy to install.
Pump Model: Standard w/ Line Cord
By Gabriel (from Seward, PA) on 12/04/2022

FAQs (2)

Ask a Question
Does ALPHA 15-55 F/LC Cast Iron Pump supports 1 1/2 Flange adapter???
Helpful? Yes 2 No
No. All Alphas accept either 3/4", 1" or 1-1/4" flanges.
By PexUniverse Customer Service on 10/13/2016
what is flow rate at 12 feet head
Helpful? Yes No

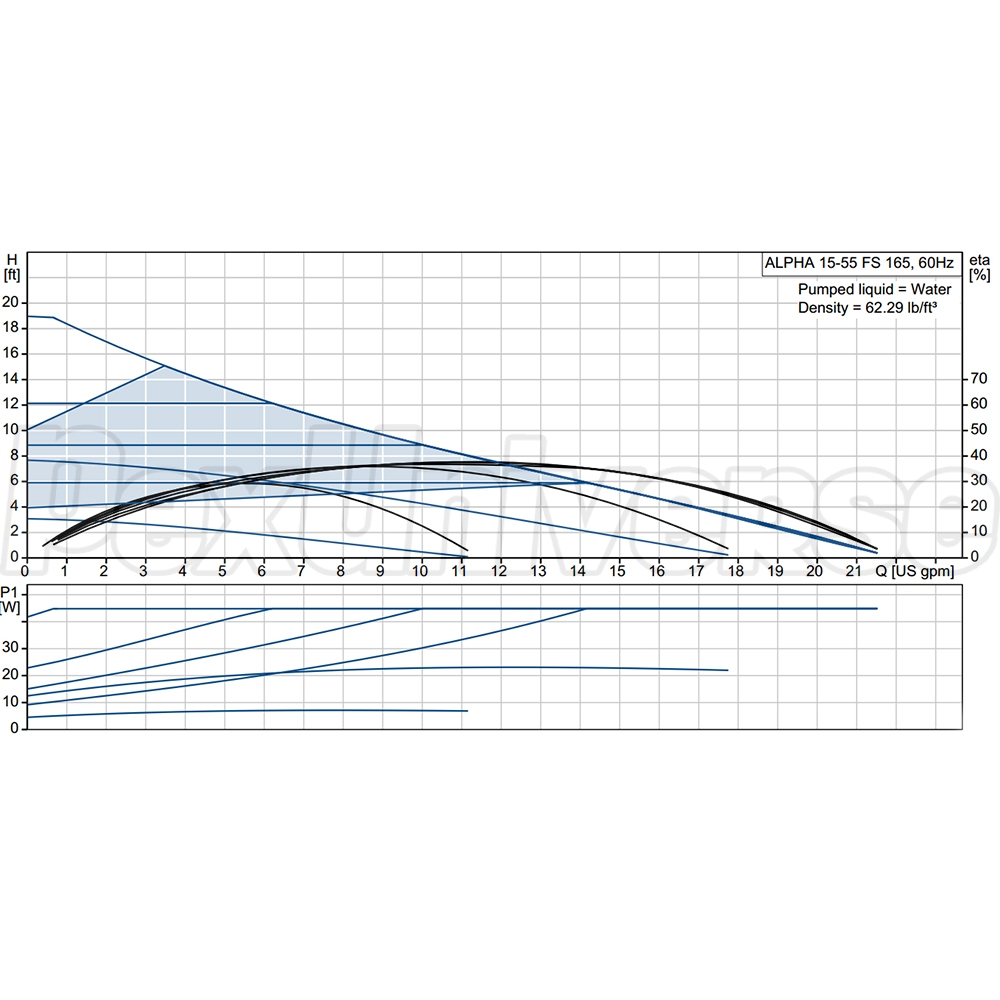

Approx. 7 GPM at fixed high speed. Will vary at different settings - see Brochure (in Literature) for details.
By PexUniverse Customer Service on 12/01/2020
